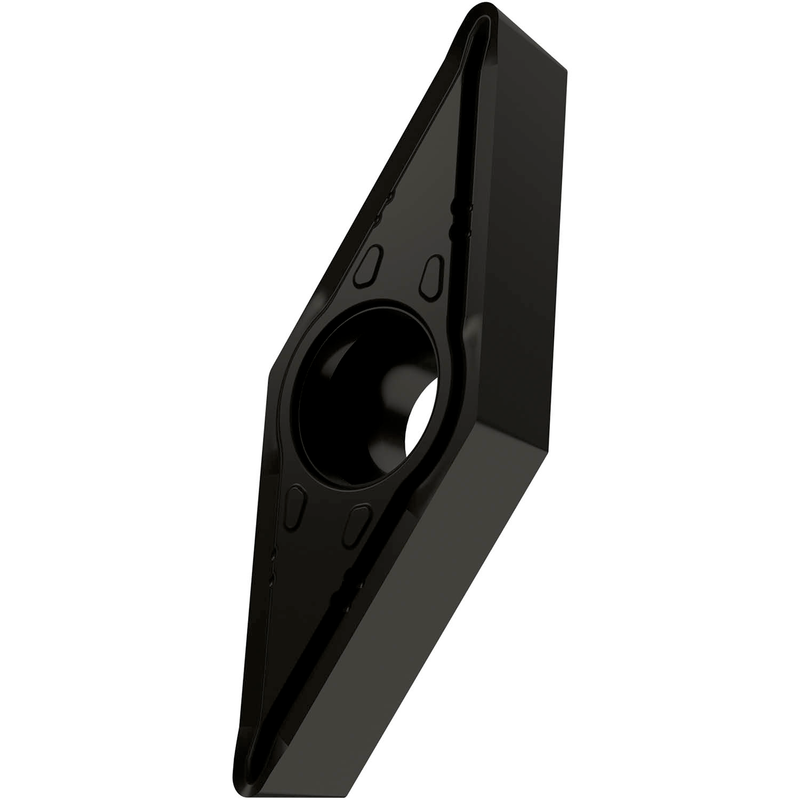

VCMT 331-UR:T9325
VCMT 331-UR:T9325

VCMT 331-UR:T9325

UGC DOR6755619
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$21.97 CAD - $21.97 CAD
$21.97 CAD
$21.97 CAD - $21.97 CAD
$21.97 CAD

Vendu en lots de : 10

Plaquette positive simple face, rhomboïde 35° avec dépouille 7°, diamètre du cercle inscrit 3/8", épaisseur 3/16", rayon de bec 1/64" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux UR, en nuance T9325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P15 - P35, pour l'usinage fin à lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)VCMT 331-UR:T9325
Product Name (ISO)VCMT 160404E-UR:T9325
GradeT9325
Chipbreaker (CBMD)VOUS
Product Number6755619
Product FamilyCMVT
Insert Geometry
Insert DesignCVMT
Insert Shape Code (SC)V - angle de 35° inclus
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Reference Numbers
EDP Number6755619
EAN3603602909855
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
File Type Download
VCMT 331-UR:T9325 — Line Drawing PDF Download
