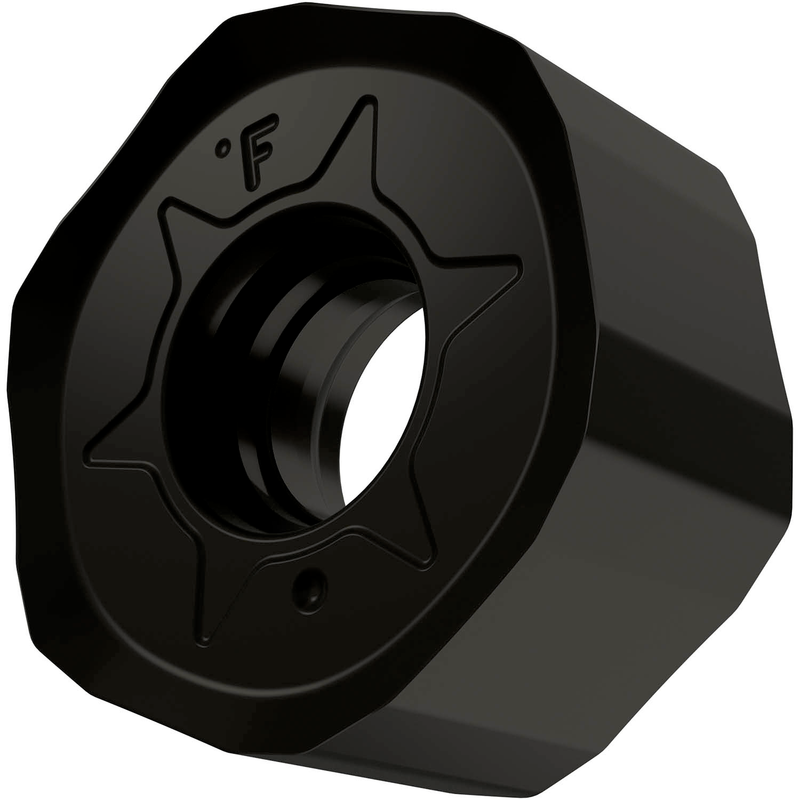

HNGX 0604ANSN-F:M9340
HNGX 0604ANSN-F:M9340

HNGX 0604ANSN-F:M9340

UGC DOR6755627
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$27.73 CAD - $27.73 CAD
$27.73 CAD
$27.73 CAD - $27.73 CAD
$27.73 CAD

Vendu en lots de : 10

Plaquette de fraisage double face HNGX 0604, hexagonale pour une profondeur de coupe maximale de 3,00 mm, avec un rayon de coin de ", une précision d'indexage selon la classe de tolérance ISO-G et une géométrie F avec arêtes de coupe et facette arrondies, en carbure WC-Co revêtu MT-CVD M9340 dans la plage de nuances ISO M30-M40 pour l'usinage de l'acier inoxydable avec les fraises à surfacer SHN06C

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)HNGX 0604ANSN-F:M9340
GradeM9340
Chipbreaker (CBMD)F
Product Number6755627
Product FamilyHNGX 06
Insert Geometry
Insert DesignHNGX
Insert Shape Code (SC)H - hexagonal
Inscribed Circle Dia. — in (IC)0.413"
Inscribed Circle Dia. — mm (IC)10.5 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number6755627
EAN3603602909930
File Type Download
HNGX 0604ANSN-F:M9340 — Line Drawing PDF Download
