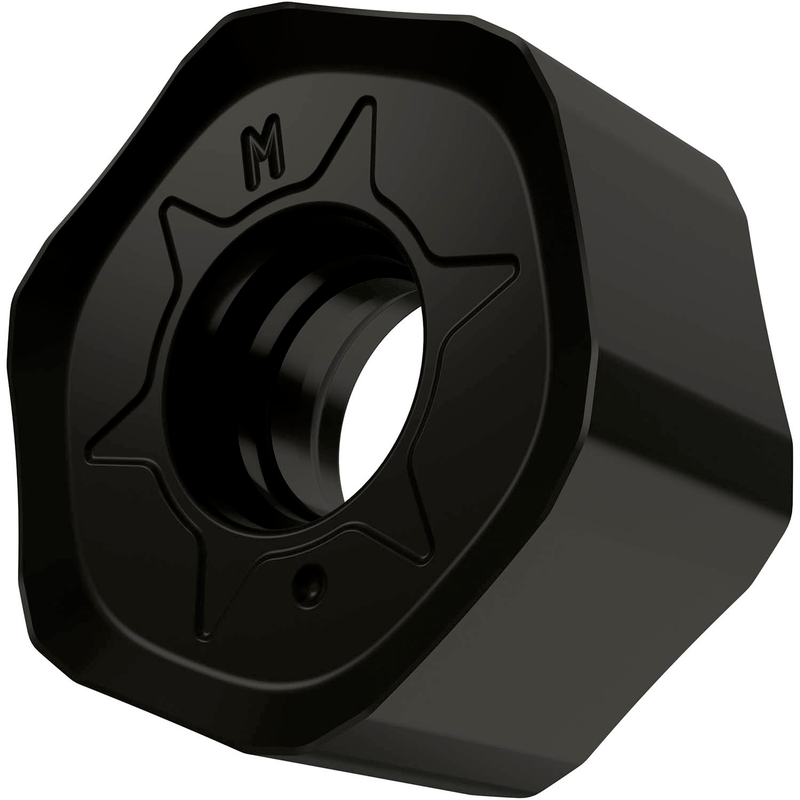

HNGX 0604ANSN-M:M9340
HNGX 0604ANSN-M:M9340

HNGX 0604ANSN-M:M9340

UGC DOR6755628
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$27.73 CAD - $27.73 CAD
$27.73 CAD
$27.73 CAD - $27.73 CAD
$27.73 CAD

Vendu en lots de : 10

Plaquette de fraisage double-face HNGX 0604, hexagonale, pour une profondeur de coupe maximale de 3 mm (0,1181"), avec rayon de coin ", une précision de positionnement selon la classe de tolérance ISO-G et une géométrie M avec des arêtes de coupe arrondies et un chanfrein, en carbure WC-Co revêtu MT-CVD M9340 dans la plage de nuances ISO M30-M40 pour l'usinage de l'acier inoxydable avec les fraises à surfacer SHN06C

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)HNGX 0604ANSN-M:M9340
GradeM9340
Chipbreaker (CBMD)M
Product Number6755628
Product FamilyHNGX 06
Insert Geometry
Insert DesignHNGX
Insert Shape Code (SC)H - hexagonale
Inscribed Circle Dia. — in (IC)0.413"
Inscribed Circle Dia. — mm (IC)10.5 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number6755628
EAN3603602909947
File Type Download
HNGX 0604ANSN-M:M9340 — Line Drawing PDF Download
