CCGW 21.51S00420:TB310
CCGW 21.51S00420:TB310

CCGW 21.51S00420:TB310

UGC DOR6755685
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$131.79 CAD - $131.79 CAD
$131.79 CAD
$131.79 CAD - $131.79 CAD
$131.79 CAD

Vendu en lots de : 2

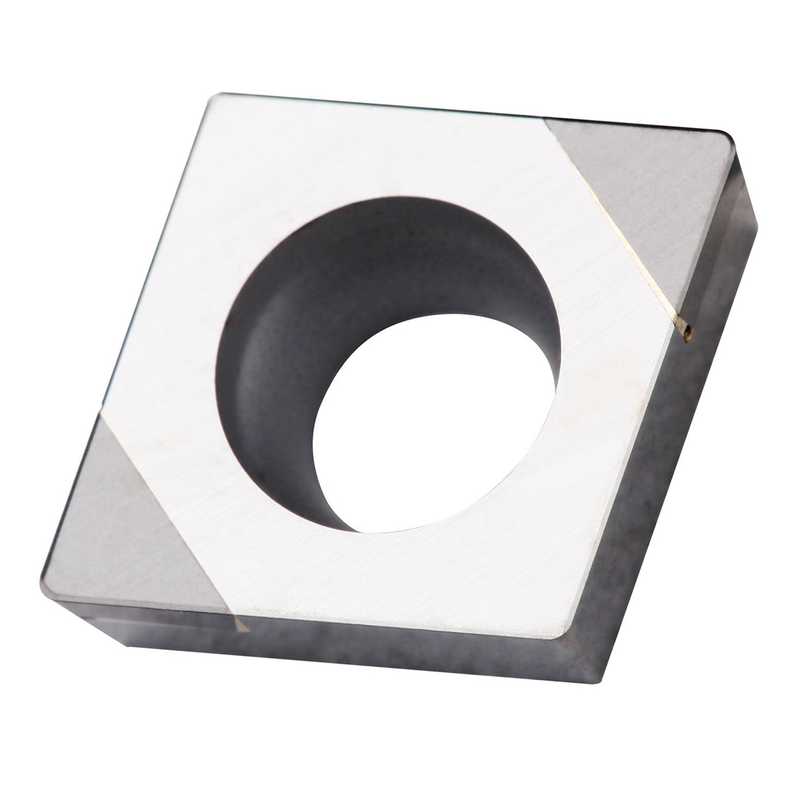

Plaquette pour tournage dur avec 2 arêtes CBN sur une face, rhomboïde 80° avec dépouille 7°, diamètre du cercle inscrit de 1/4", épaisseur 3/32", rayon de bec 1/64", précision de positionnement selon la classe de tolérance ISO-G, arêtes de coupe arrondies avec brise-copeaux T-land -20°/0.004", en nuance TB310, un nitrure de bore cubique non revêtu dans la gamme ISO H01-H10, pour l'usinage à grande vitesse de matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI)CCGW 21.51S00420:TB310
Product Name (ISO)CCGW 060204S01020B:TB310
GradeTB310
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755685
Product FamilyCCGW CBN

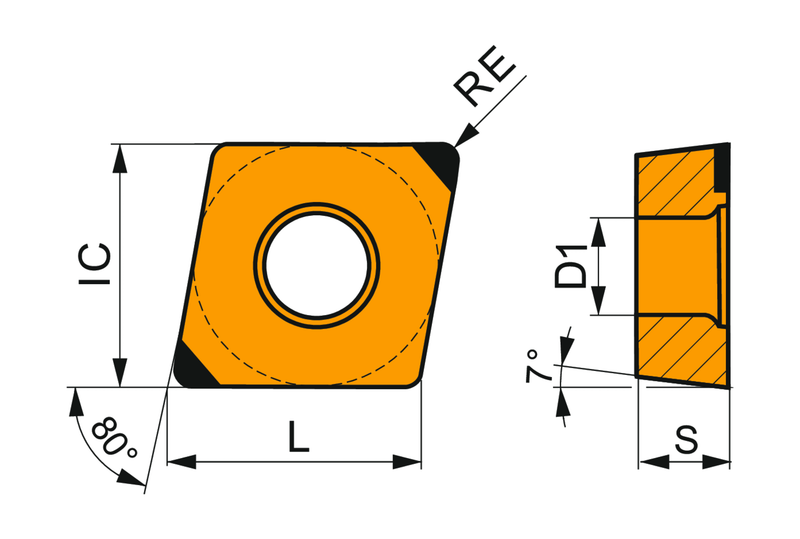

Insert Geometry
Insert DesignCCGW
Insert Shape Code (SC)C - angle inclus rhomboïde 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.106"
Depth of Cut Max — mm (APMX)2.7 mm
Tool Information
Reference Numbers
EDP Number6755685
EAN3603602910516
File Type Download
CCGW 21.51S00420:TB310 — Line Drawing PDF Download
