CNGA 432S00420:TB310
CNGA 432S00420:TB310

CNGA 432S00420:TB310

UGC DOR6755688
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$131.79 CAD - $131.79 CAD
$131.79 CAD
$131.79 CAD - $131.79 CAD
$131.79 CAD

Vendu en lots de : 2

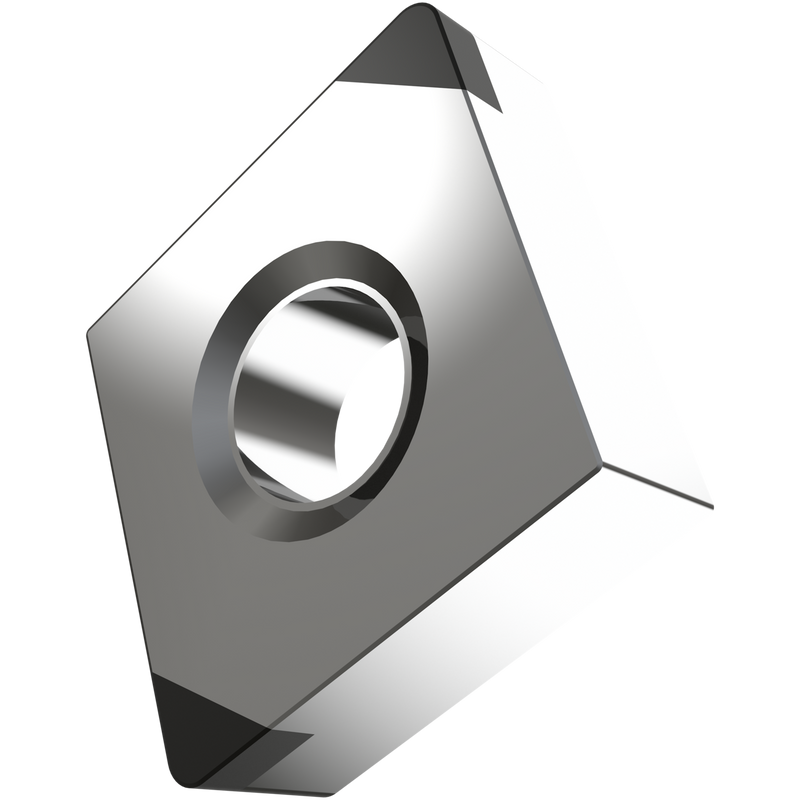

Plaquette de tournage dur avec 2 coins à pointe CBN sur une face, rhomboïde 80° avec diamètre de cercle inscrit de 1/2", 3/16" d'épaisseur, rayon de bec de 1/32", précision d'indexage selon la classe de tolérance ISO-G, arêtes de coupe arrondies avec facette T-land -20°/0.004", en nuance TB310, un nitrure de bore cubique non revêtu dans la plage ISO H01-H10, pour l'usinage à grande vitesse des matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI)CNGA 432S00420:TB310
Product Name (ISO)CNGA 120408S01020B:TB310
GradeTB310
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755688
Product FamilyCNGA CBN

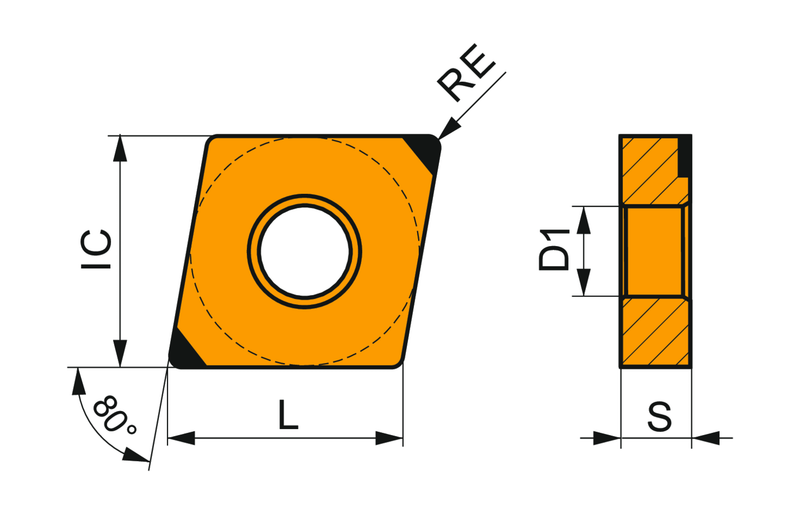

Insert Geometry
Insert DesignACNG
Insert Shape Code (SC)C - angle inclus rhomboïdal 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.106"
Depth of Cut Max — mm (APMX)2.7 mm
Tool Information
Reference Numbers
EDP Number6755688
EAN3603602910547
File Type Download
CNGA 432S00420:TB310 — Line Drawing PDF Download
