WNGA 432S00420:TB310
WNGA 432S00420:TB310

WNGA 432S00420:TB310

UGC DOR6755690
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$191.79 CAD - $191.79 CAD
$191.79 CAD
$191.79 CAD - $191.79 CAD
$191.79 CAD

Vendu en lots de : 2

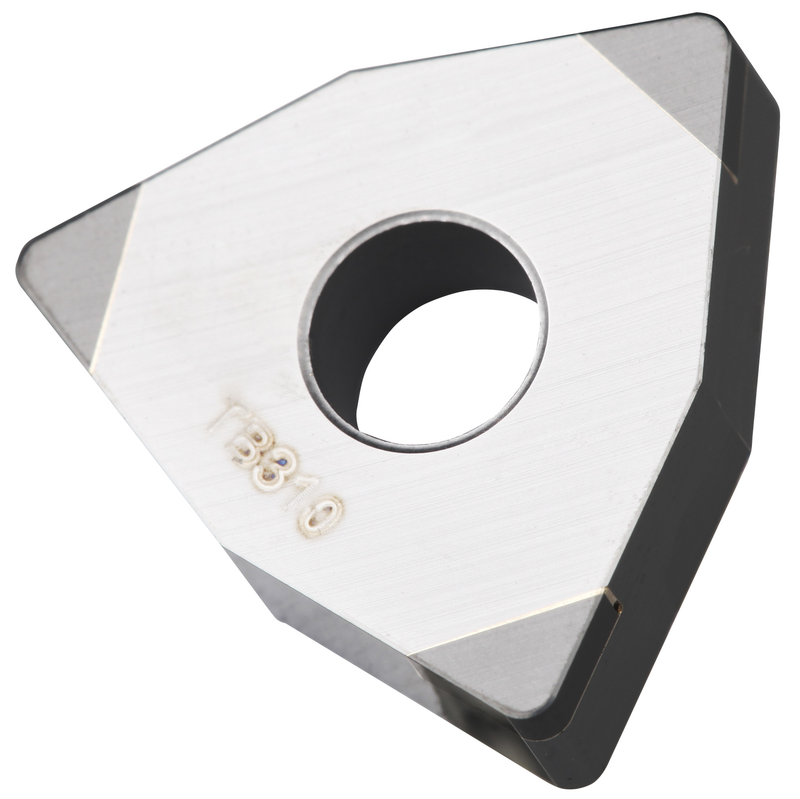

Insert à surfacer-durer avec 3 coins CBN sur une face, trigone 80° avec un diamètre de cercle inscrit de 1/2", 3/16" d'épaisseur, rayon de bec de 1/32", précision d'indexage selon la classe de tolérance ISO-G, arêtes de coupe arrondies avec facette T-land -20°/0.004", en nuance TB310, un nitrure de bore cubique non revêtu dans la gamme ISO H01-H10, pour l'usinage à grande vitesse de matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI)WNGA 432S00420:TB310
Product Name (ISO)WNGA 080408S01020C:TB310
GradeTB310
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755690
Product FamilyWNGA CBN

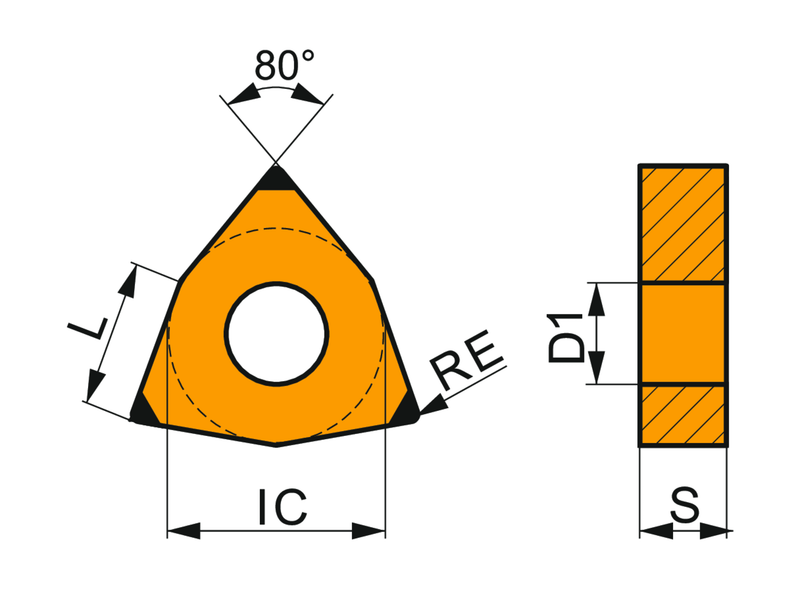

Insert Geometry
Insert DesignWNGA
Insert Shape Code (SC)W - trigon
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.106"
Depth of Cut Max — mm (APMX)2.7 mm
Tool Information
Reference Numbers
EDP Number6755690
EAN3603602910561
File Type Download
WNGA 432S00420:TB310 — Line Drawing PDF Download
