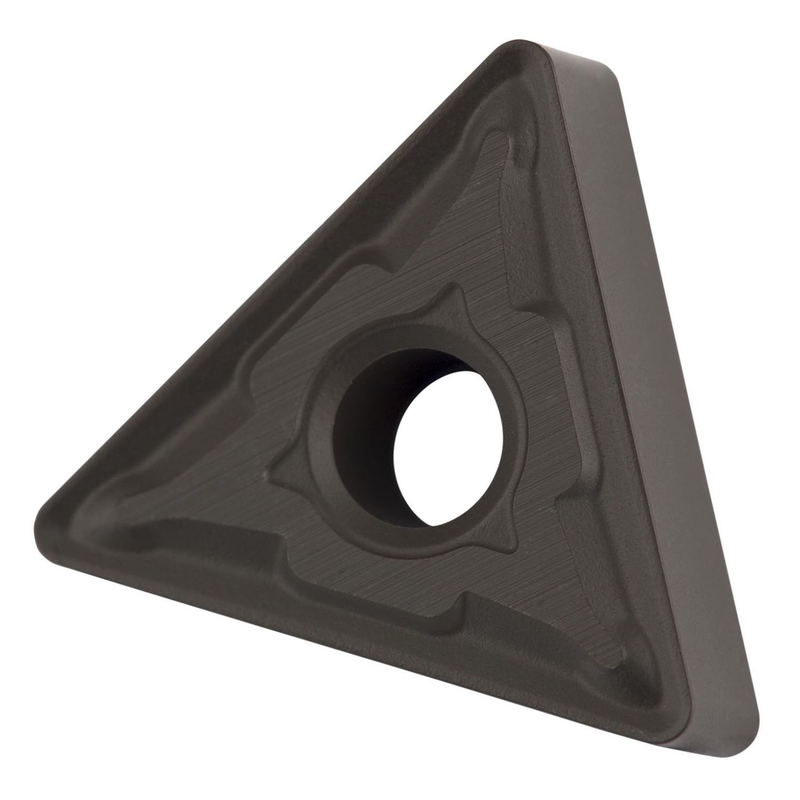

TNMG 432-M:T5315
TNMG 432-M:T5315

TNMG 432-M:T5315

UGC DOR6755703
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.61 CAD - $15.61 CAD
$15.61 CAD
$15.61 CAD - $15.61 CAD
$15.61 CAD

Vendu en lots de : 10

Plaquette négative double face, triangulaire avec diamètre du cercle inscrit de 1/2", épaisseur de 3/16", rayon de bec de 1/32" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux M, en nuance T5315, un carbure WC-Co revêtu MT-CVD dans la plage ISO K10-K25, pour l'usinage fin à lourd des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)TNMG 432-M:T5315
Product Name (ISO)TNMG 220408E-M:T5315
GradeT5315
Chipbreaker (CBMD)M
Product Number6755703
Product FamilyTNMG
Insert Geometry
Insert DesignTNMG
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.236"
Depth of Cut Max — mm (APMX)6.0 mm
Tool Information
Reference Numbers
EDP Number6755703
EAN3603602910691
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Usage principal
H — Hardened Materials Utilisation possible
File Type Download
TNMG 432-M:T5315 — Line Drawing PDF Download
