CCMW 21.50.5:T5305
CCMW 21.50.5:T5305

CCMW 21.50.5:T5305

UGC DOR6755718
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.97 CAD - $10.97 CAD
$10.97 CAD
$10.97 CAD - $10.97 CAD
$10.97 CAD

Vendu en lots de : 10

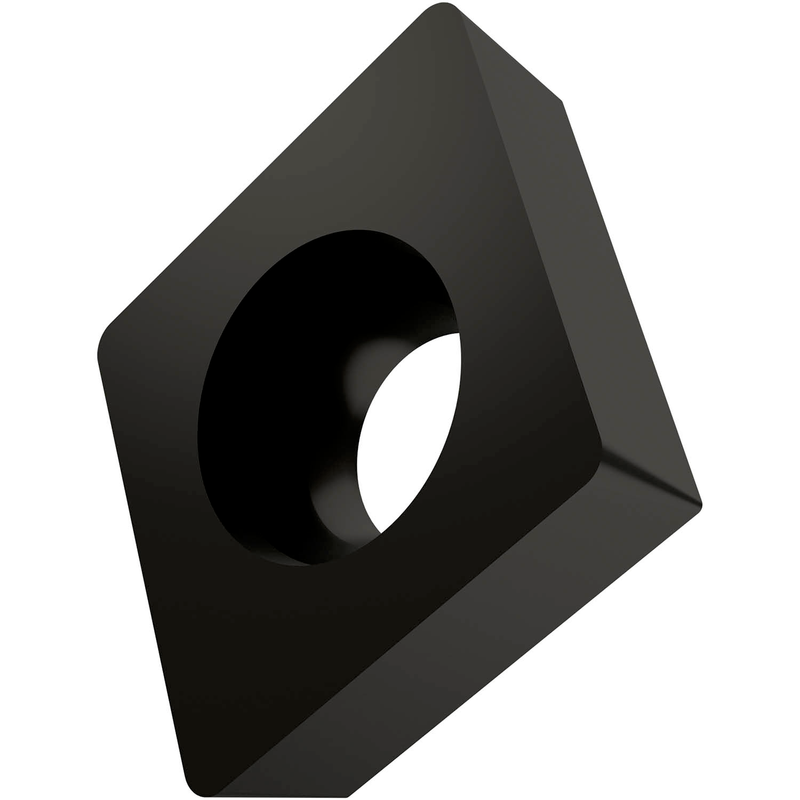

Plaquette positive unilatérale, rhomboïdale 80° avec un dépouille de 7°, diamètre du cercle inscrit de 1/4", épaisseur de 3/32", rayon de bec de 1/128" et précision d'indexage selon la classe de tolérance ISO- M, en nuance T5305, un carbure WC-Co revêtu MT-CVD dans la gamme ISO K01-K15, pour la finition de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI)CCMW 21.50.5:T5305
Product Name (ISO)CCMW 060202:T5305
GradeT5305
Chipbreaker (CBMD)Pas de brise-copeaux
Product Number6755718
Product FamilyCCMF

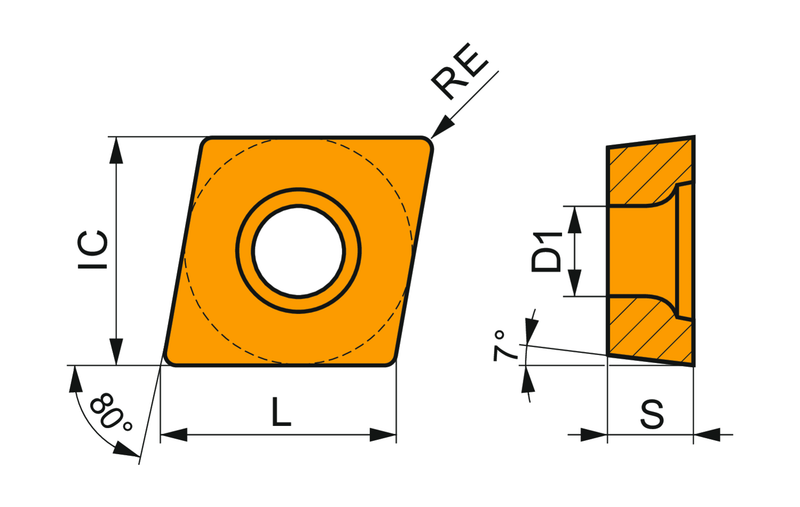

Insert Geometry
Insert DesignCCMV
Insert Shape Code (SC)C - angle inclus rhombique de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.165"
Depth of Cut Max — mm (APMX)4.2 mm
Tool Information
Reference Numbers
EDP Number6755718
EAN3603602910844
File Type Download
CCMW 21.50.5:T5305 — Line Drawing PDF Download
