CCMW 32.52:T5305
CCMW 32.52:T5305

CCMW 32.52:T5305

UGC DOR6755721
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.79 CAD - $11.79 CAD
$11.79 CAD
$11.79 CAD - $11.79 CAD
$11.79 CAD

Vendu en lots de : 10

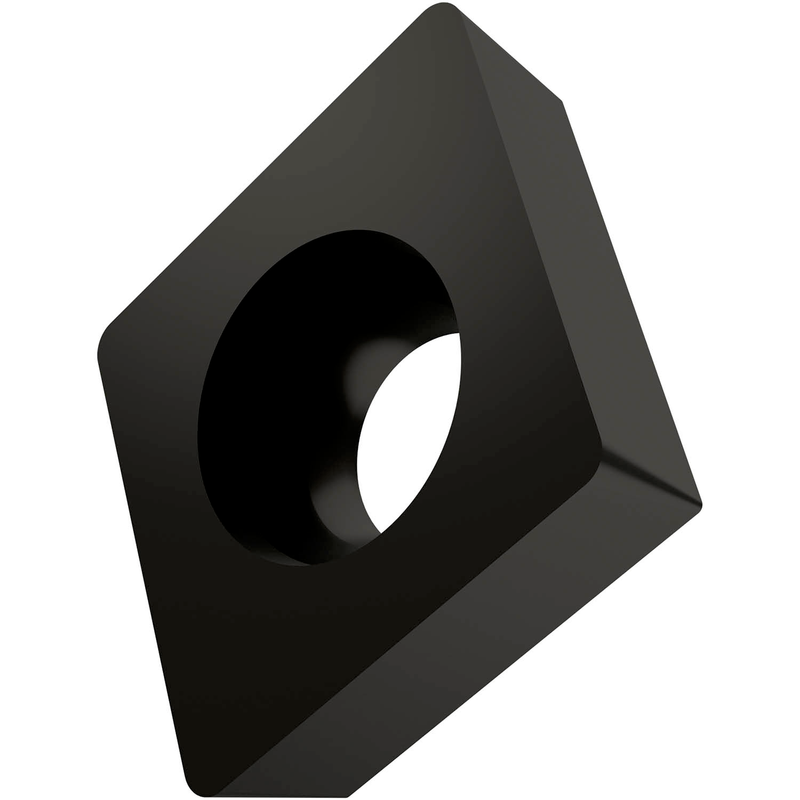

Plaquette de tournage positive simple face, rhomboïde à 80° avec un dépouille de 7°, un diamètre de cercle inscrit de 3/8", une épaisseur de 5/32", un rayon de bec de 1/32" et une précision de positionnement conforme à la classe de tolérance ISO M, en nuance T5305, un carbure WC-Co revêtu MT-CVD de la gamme ISO K01-K15, pour l'usinage fin à moyen des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)CCMW 32.52:T5305
Product Name (ISO)CCMW 09T308:T5305
GradeT5305
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755721
Product FamilyCCMW

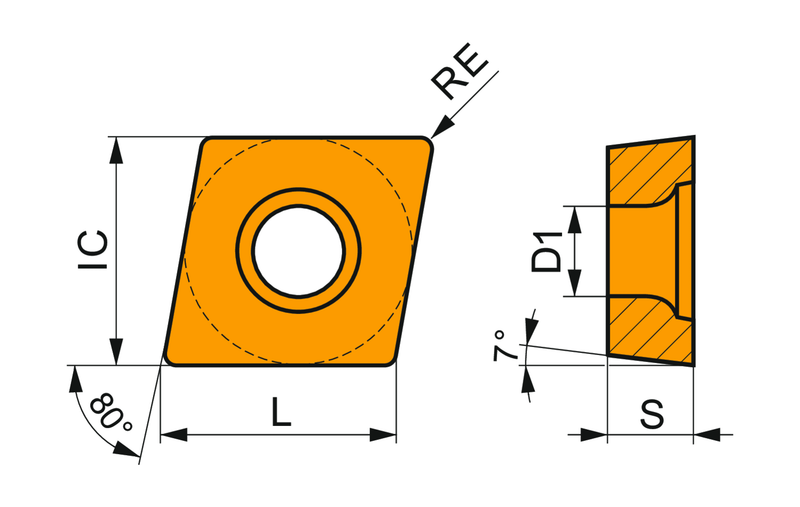

Insert Geometry
Insert DesignCCMF
Insert Shape Code (SC)C - angle de 80° inclus, rhomboédrique
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.248"
Depth of Cut Max — mm (APMX)6.3 mm
Tool Information
Reference Numbers
EDP Number6755721
EAN3603602910875
File Type Download
CCMW 32.52:T5305 — Line Drawing PDF Download
