CCMW 431:T5305
CCMW 431:T5305

CCMW 431:T5305

UGC DOR6755722
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.54 CAD - $16.54 CAD
$16.54 CAD
$16.54 CAD - $16.54 CAD
$16.54 CAD

Vendu en lots de : 10

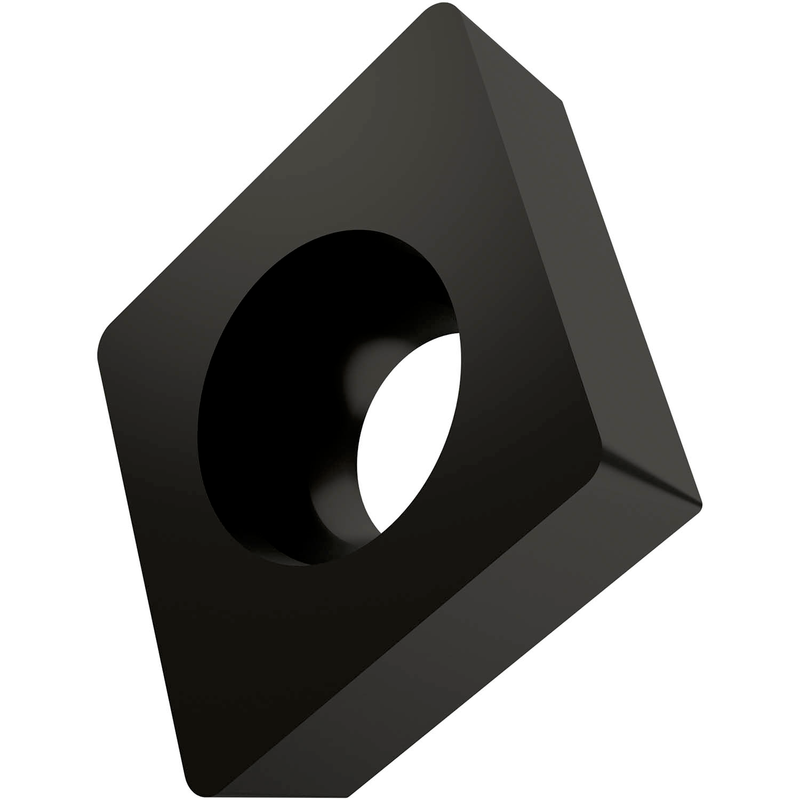

Plaquette de tournage positive simple face, rhomboïde 80° avec dépouille 7°, diamètre du cercle inscrit 1/2", épaisseur 3/16", rayon de bec 1/64" et précision de positionnement selon la classe de tolérance ISO M, en nuance T5305, un carbure WC-Co revêtu MT-CVD dans la gamme ISO K01-K15, pour l'usinage fin à moyen des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)CCMW 431:T5305
Product Name (ISO)CCMW 120404:T5305
GradeT5305
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755722
Product FamilyCCMV

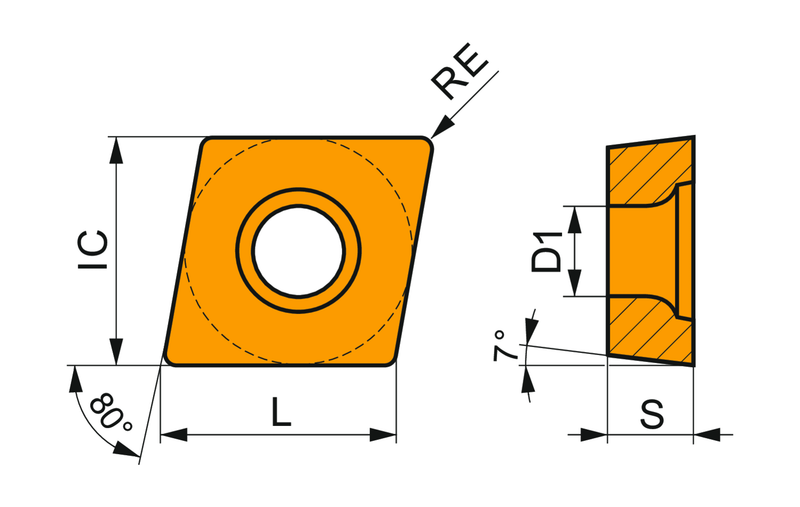

Insert Geometry
Insert DesignCCMW
Insert Shape Code (SC)C - rhomboïdal angle inclus de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.331"
Depth of Cut Max — mm (APMX)8.4 mm
Tool Information
Reference Numbers
EDP Number6755722
EAN3603602910882
File Type Download
CCMW 431:T5305 — Line Drawing PDF Download
