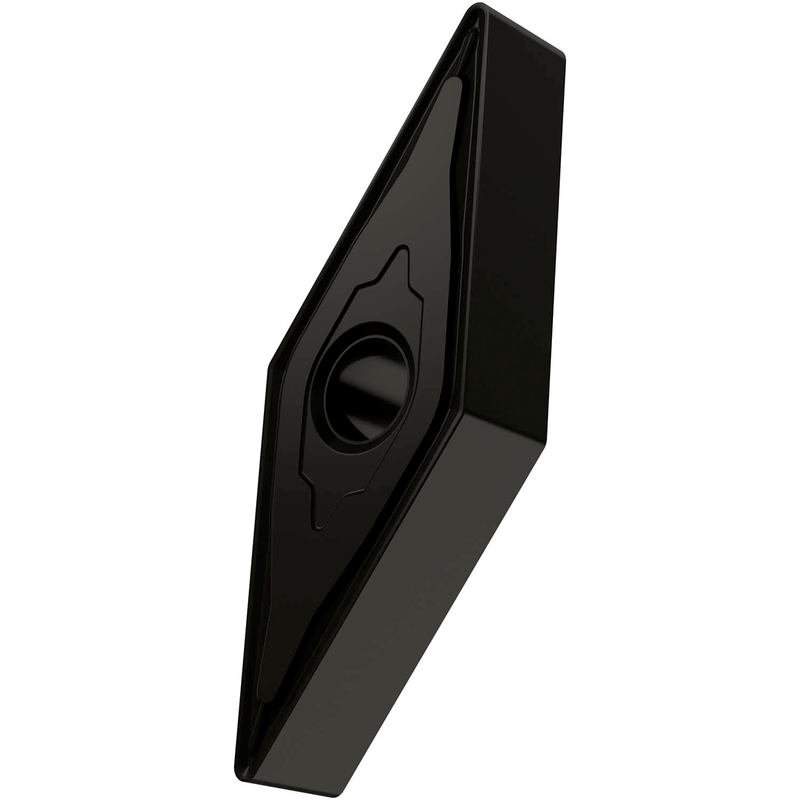

VNMG 331-M:T5315
VNMG 331-M:T5315

VNMG 331-M:T5315

UGC DOR6755724
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.21 CAD - $20.21 CAD
$20.21 CAD
$20.21 CAD - $20.21 CAD
$20.21 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde 35° avec un diamètre de cercle inscrit de 3/8", 3/16" d'épaisseur, un rayon de bec de 1/64" et une précision de positionnement selon la classe de tolérance ISO M, brise-copeaux M, en nuance T5315, un carbure WC-Co revêtu MT-CVD dans la gamme ISO K10-K25, pour l'usinage du dégrossissage à la finition des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)VNMG 331-M:T5315
Product Name (ISO)VNMG 160404E-M:T5315
GradeT5315
Chipbreaker (CBMD)M
Product Number6755724
Product FamilyVNMG
Insert Geometry
Insert DesignVNMG
Insert Shape Code (SC)V - angle fermé 35°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number6755724
EAN3603602910905
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Usage principal
H — Hardened Materials Usage possible
File Type Download
VNMG 331-M:T5315 — Line Drawing PDF Download
