CNMA 432S:T5305
CNMA 432S:T5305

CNMA 432S:T5305

UGC DOR6755729
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.00 CAD - $14.00 CAD
$14.00 CAD
$14.00 CAD - $14.00 CAD
$14.00 CAD

Vendu en lots de : 10

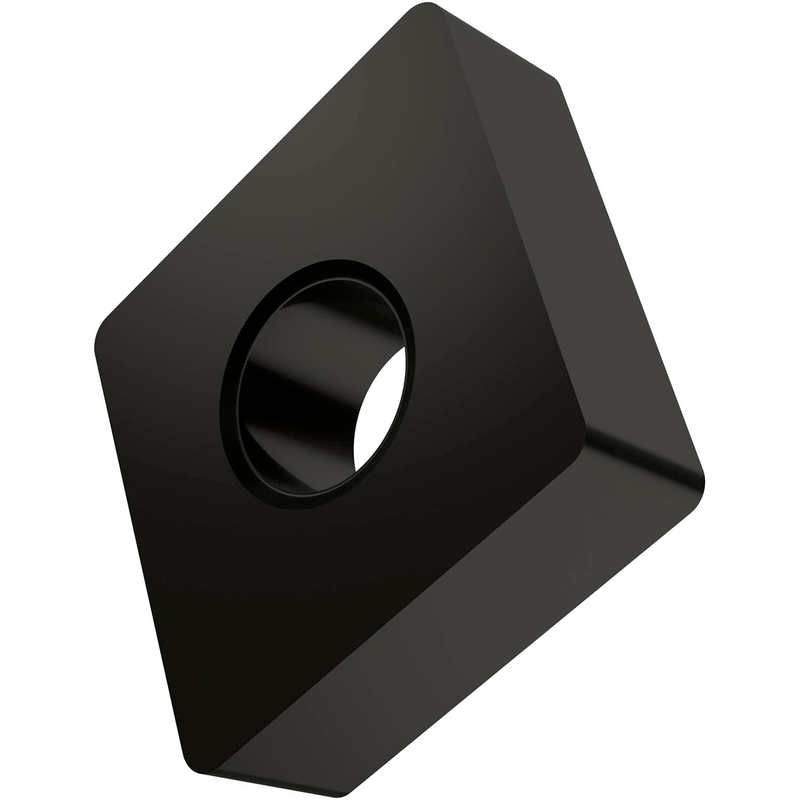

Plaquette négative double face, rhomboïde à 80° avec un cercle inscrit de 1/2" de diamètre, 3/16" d'épaisseur, rayon de bec de 1/32", précision d'indexage selon la classe de tolérance ISO M, avec des arêtes de coupe arrondies et un chanfrein, en nuance T5305, un carbure WC-Co revêtu MT-CVD dans la plage ISO K01-K15, pour l'usinage léger à lourd des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMA 432S:T5305
Product Name (ISO)CNMA 120408S:T5305
GradeT5305
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755729
Product FamilyCNMA
Insert Geometry
Insert DesignCNMA
Insert Shape Code (SC)C - angle inclus rhombique de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.331"
Depth of Cut Max — mm (APMX)8.4 mm
Tool Information
Reference Numbers
EDP Number6755729
EAN3603602910950
File Type Download
CNMA 432S:T5305 — Line Drawing PDF Download
