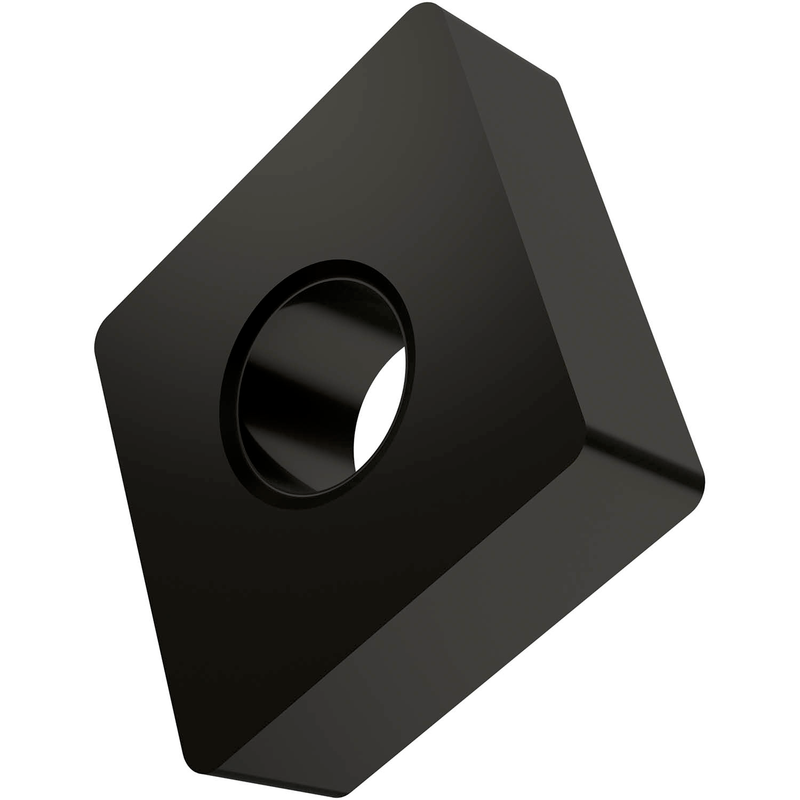

CNMA 434:T5305
CNMA 434:T5305

CNMA 434:T5305

UGC DOR6755735
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.00 CAD - $14.00 CAD
$14.00 CAD
$14.00 CAD - $14.00 CAD
$14.00 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde 80° avec diamètre de cercle inscrit de 1/2", épaisseur de 3/16", rayon de bec de 1/16" et précision de positionnement selon la classe de tolérance ISO-M, en nuance T5305, un carbure WC-Co revêtu MT-CVD dans la gamme ISO K01-K15, pour l'usinage fin à lourd des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMA 434:T5305
Product Name (ISO)CNMA 120416:T5305
GradeT5305
Chipbreaker (CBMD)Pas de brise-copeaux
Product Number6755735
Product FamilyCMNA
Insert Geometry
Insert DesignCNMA
Insert Shape Code (SC)C - angle dièdre 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Depth of Cut Max — in (APMX)0.331"
Depth of Cut Max — mm (APMX)8.4 mm
Tool Information
Reference Numbers
EDP Number6755735
EAN3603602911018
File Type Download
CNMA 434:T5305 — Line Drawing PDF Download
