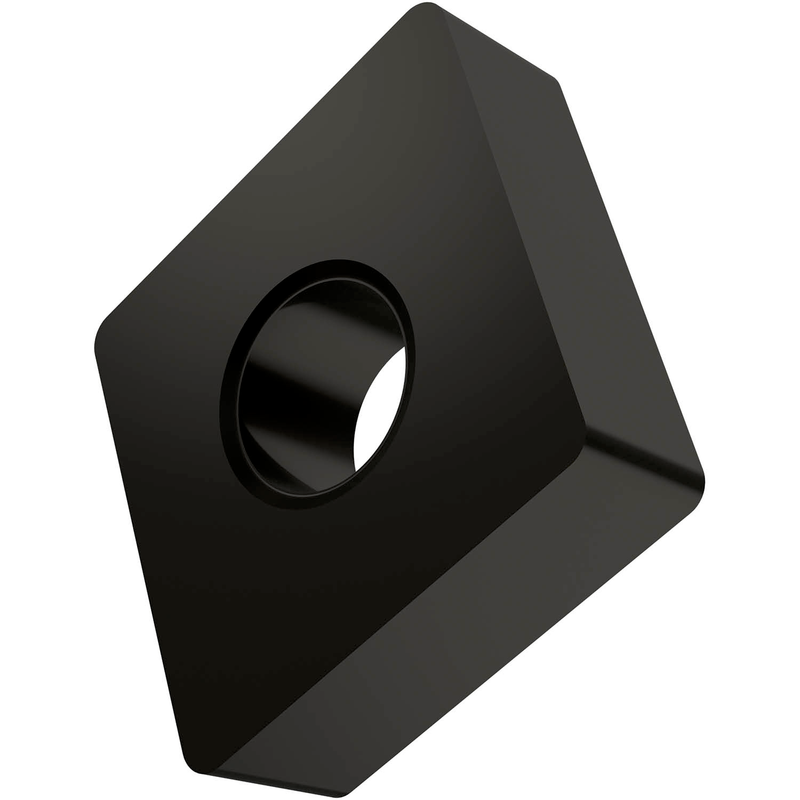

CNMA 543:T5305
CNMA 543:T5305

CNMA 543:T5305

UGC DOR6755736
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.29 CAD - $22.29 CAD
$22.29 CAD
$22.29 CAD - $22.29 CAD
$22.29 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde 80° avec diamètre du cercle inscrit de 5/8", épaisseur de 1/4", rayon de bec de 3/64" et précision de positionnement selon la classe de tolérance ISO M, en nuance T5305, un carbure WC-Co revêtu MT-CVD dans la plage ISO K01-K15, pour l'usinage léger à lourd de fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMA 543:T5305
Product Name (ISO)CNMA 160612:T5305
GradeT5305
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755736
Product FamilyCNMA
Insert Geometry
Insert DesignCNMA
Insert Shape Code (SC)C - angle compris rhomboédrique 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.625"
Inscribed Circle Dia. — mm (IC)15.88 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.335"
Depth of Cut Max — mm (APMX)8.5 mm
Tool Information
Reference Numbers
EDP Number6755736
EAN3603602911025
File Type Download
CNMA 543:T5305 — Line Drawing PDF Download
