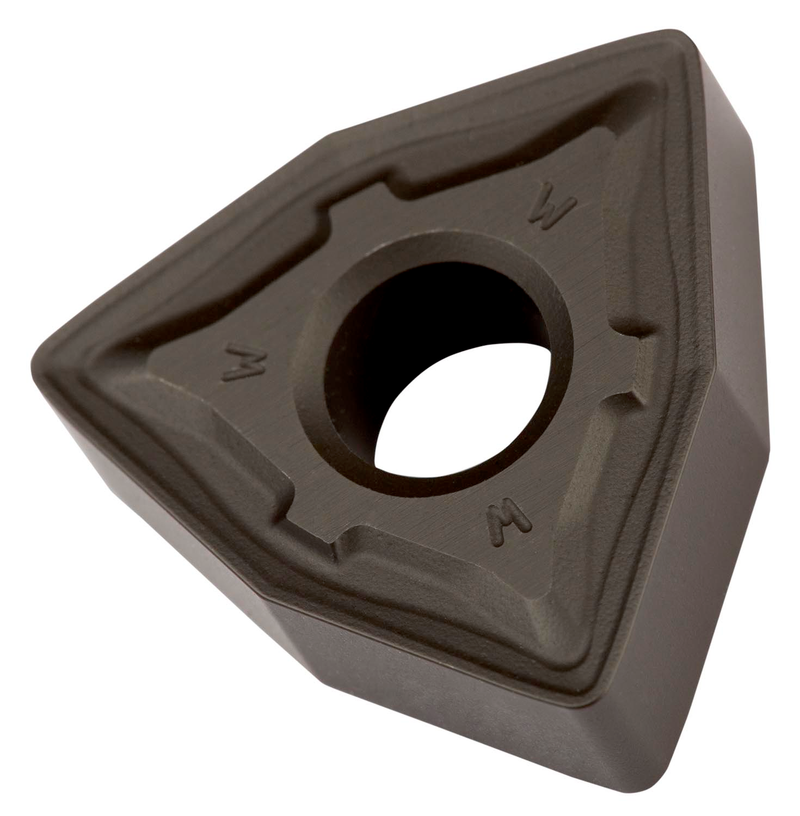

WNMG 333W-M:T5315
WNMG 333W-M:T5315

WNMG 333W-M:T5315

UGC DOR6755737
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.64 CAD - $12.64 CAD
$12.64 CAD
$12.64 CAD - $12.64 CAD
$12.64 CAD

Vendu en lots de : 10

Plaquette négative double face, trigon de 80° avec un diamètre de cercle inscrit de 3/8", 3/16" d'épaisseur, rayon de bec de 3/64", précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux M avec arête racleuse, en nuance T5315, un carbure WC-Co revêtu MT-CVD, pour l'usinage fin à lourd

For more information about this product, click here

Identification
Ordering Code (ANSI)WNMG 333W-M:T5315
Product Name (ISO)WNMG 060412W-M:T5315
GradeT5315
Chipbreaker (CBMD)S-M
Product Number6755737
Product FamilyWNMG
Insert Geometry
Insert DesignWNMG
Insert Shape Code (SC)W - trigone
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number6755737
EAN3603602911032
File Type Download
WNMG 333W-M:T5315 — Line Drawing PDF Download
