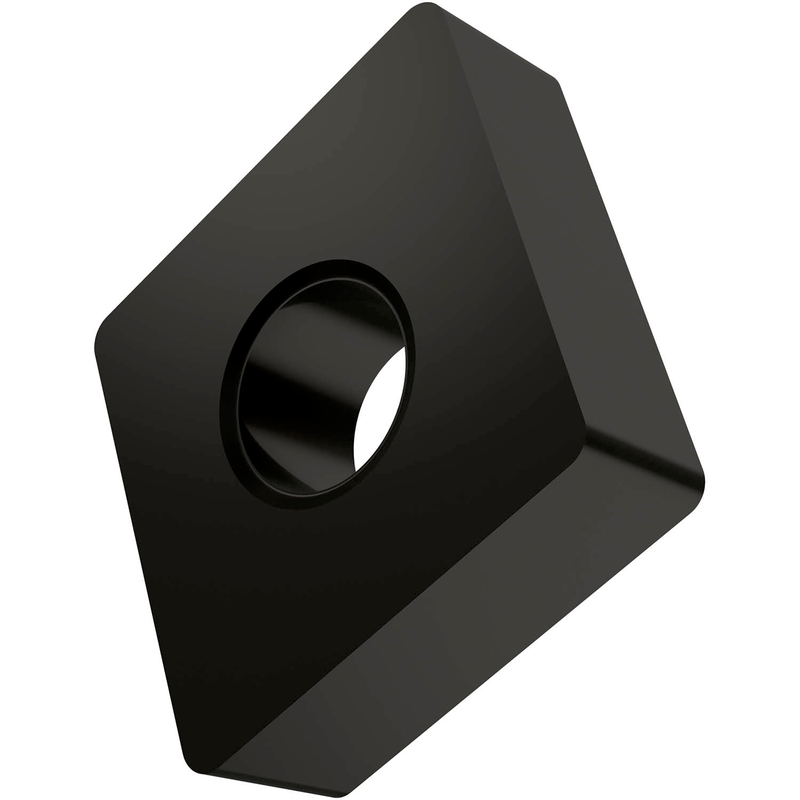

CNMA 643:T5305
CNMA 643:T5305

CNMA 643:T5305

UGC DOR6755739
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$30.26 CAD - $30.26 CAD
$30.26 CAD
$30.26 CAD - $30.26 CAD
$30.26 CAD

Vendu en lots de : 10

Plaquette réversible négative de tournage, rhomboïdale à 80° avec un diamètre du cercle inscrit de 19,05 mm, 6,35 mm d'épaisseur, rayon de bec de 1,19 mm et une précision de positionnement selon la classe de tolérance ISO M, en nuance T5305, un carbure WC-Co revêtu MT-CVD dans la plage ISO K01-K15, pour l'usinage des fontes, de la finition à l'ébauche

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMA 643:T5305
Product Name (ISO)CNMA 190612:T5305
GradeT5305
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755739
Product FamilyCNMA
Insert Geometry
Insert DesignCNMA
Insert Shape Code (SC)C - angle inclus rhombique 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.5"
Depth of Cut Max — mm (APMX)12.7 mm
Tool Information
Reference Numbers
EDP Number6755739
EAN3603602911056
File Type Download
CNMA 643:T5305 — Line Drawing PDF Download
