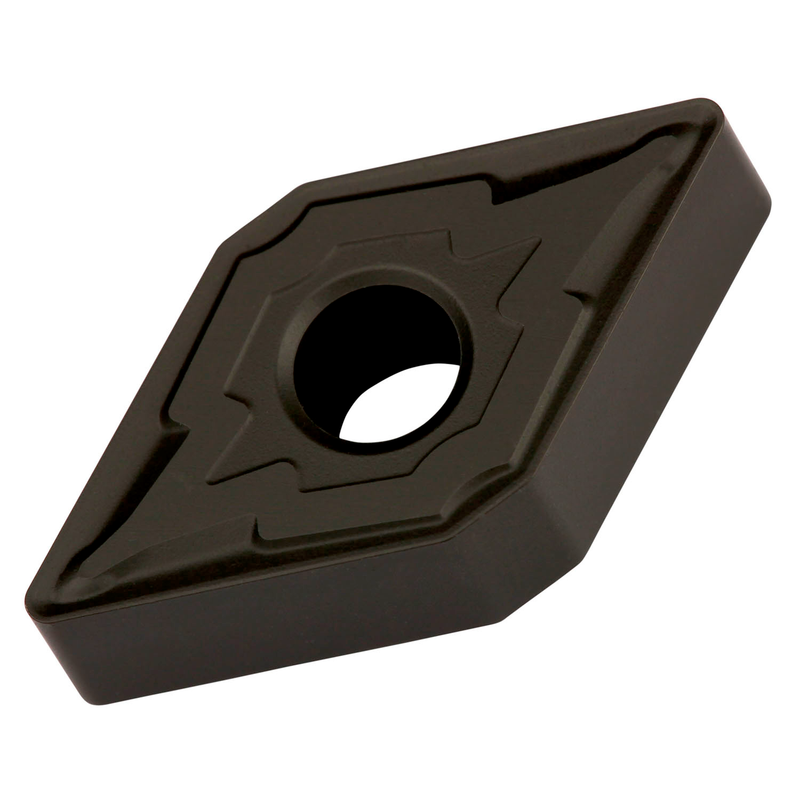

DNMG 331-M:T5315
DNMG 331-M:T5315

DNMG 331-M:T5315

UGC DOR6755744
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.36 CAD - $17.36 CAD
$17.36 CAD
$17.36 CAD - $17.36 CAD
$17.36 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde 55° avec diamètre de cercle inscrit de 3/8", épaisseur 3/16", rayon de bec 1/64" et précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux M, en nuance T5315, un carbure WC-Co revêtu MT-CVD dans la gamme ISO K10-K25, pour l'usinage de la fonte, de la finition à l'ébauche

For more information about this product, click here

Identification
Ordering Code (ANSI)DNMG 331-M:T5315
Product Name (ISO)DNMG 110404E-M:T5315
GradeT5315
Chipbreaker (CBMD)M
Product Number6755744
Product FamilyDNMG
Insert Geometry
Insert DesignDNMG
Insert Shape Code (SC)D - angle d'ouverture 55°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number6755744
EAN3603602911100
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Usage principal
H — Hardened Materials Utilisation possible
File Type Download
DNMG 331-M:T5315 — Line Drawing PDF Download
