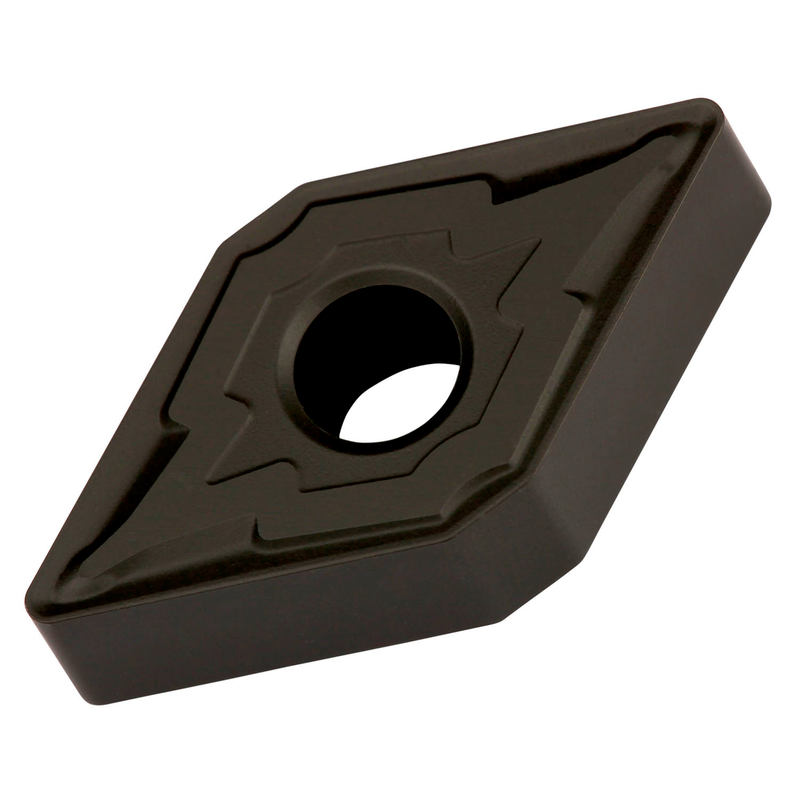

DNMG 441-M:T5315
DNMG 441-M:T5315

DNMG 441-M:T5315

UGC DOR6755746
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.29 CAD - $22.29 CAD
$22.29 CAD
$22.29 CAD - $22.29 CAD
$22.29 CAD

Vendu en lots de : 10

Plaquette négative double face pour tournage, rhomboïde 55° avec cercle inscrit de 1/2", 1/4" d'épaisseur, rayon de bec de 1/64" et précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux M, en nuance T5315, un carbure WC-Co revêtu MT-CVD dans la gamme ISO K10-K25, pour l'usinage du primaire à lourd de fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)DNMG 441-M:T5315
Product Name (ISO)DNMG 150604E-M:T5315
GradeT5315
Chipbreaker (CBMD)M
Product Number6755746
Product FamilyDNMG
Insert Geometry
Insert DesignDNMG
Insert Shape Code (SC)D - angle rentrant de 55° (forme losange)
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number6755746
EAN3603602911124
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Usage principal
H — Hardened Materials Utilisation possible
File Type Download
DNMG 441-M:T5315 — Line Drawing PDF Download
