SCMT 32.52-RM:T5315
SCMT 32.52-RM:T5315

SCMT 32.52-RM:T5315

UGC DOR6755762
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.61 CAD - $13.61 CAD
$13.61 CAD
$13.61 CAD - $13.61 CAD
$13.61 CAD

Vendu en lots de : 10

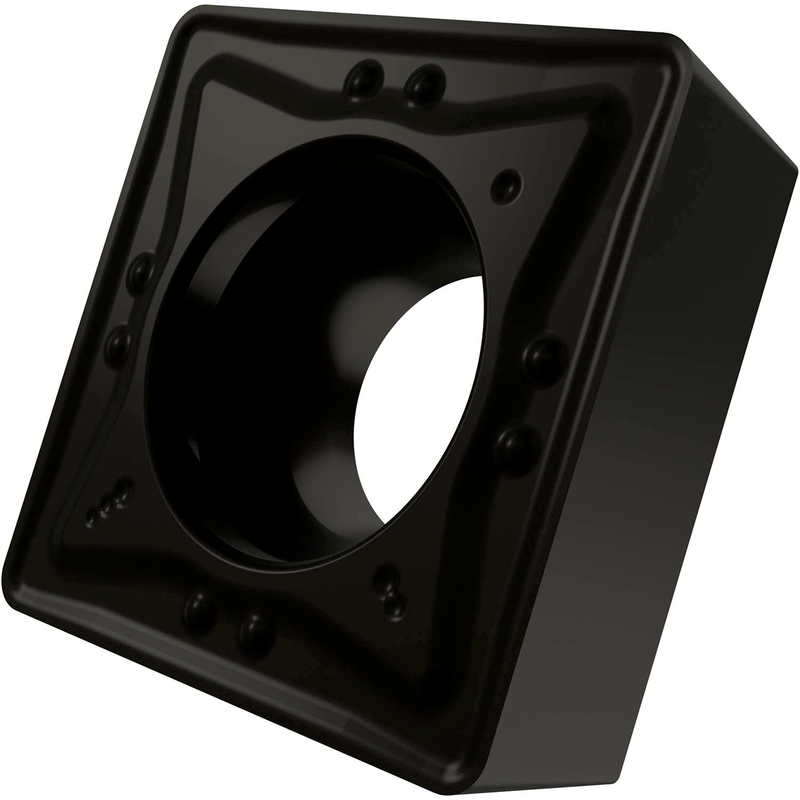

Plaquette de tournage positive simple face, carrée avec dépouille de 7°, diamètre du cercle inscrit de 3/8", épaisseur de 5/32", rayon de bec de 1/32" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux RM, en nuance T5315, un carbure WC-Co revêtu MT-CVD dans la plage ISO K10-K25, pour l'usinage fin à lourd des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)SCMT 32.52-RM:T5315
Product Name (ISO)SCMT 09T308E-RM:T5315
GradeT5315
Chipbreaker (CBMD)RM
Product Number6755762
Product FamilySCMT

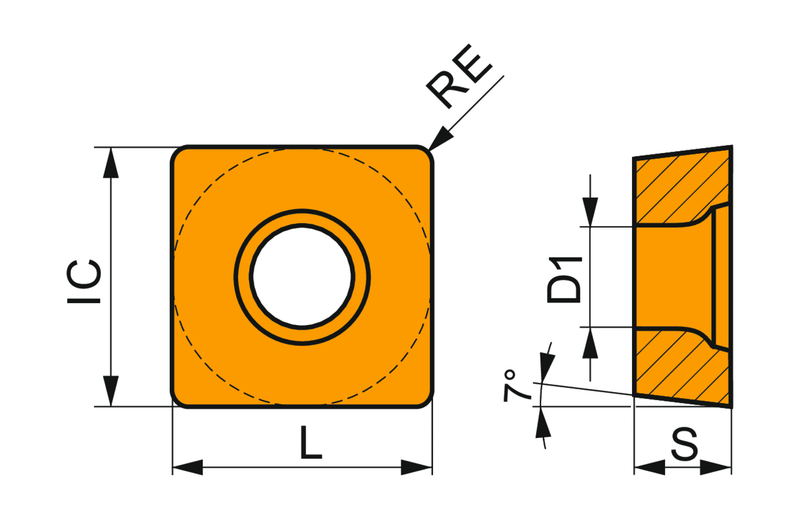

Insert Geometry
Insert DesignSCMT
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.157"
Depth of Cut Max — mm (APMX)4.0 mm
Tool Information
Reference Numbers
EDP Number6755762
EAN3603602911285
File Type Download
SCMT 32.52-RM:T5315 — Line Drawing PDF Download
