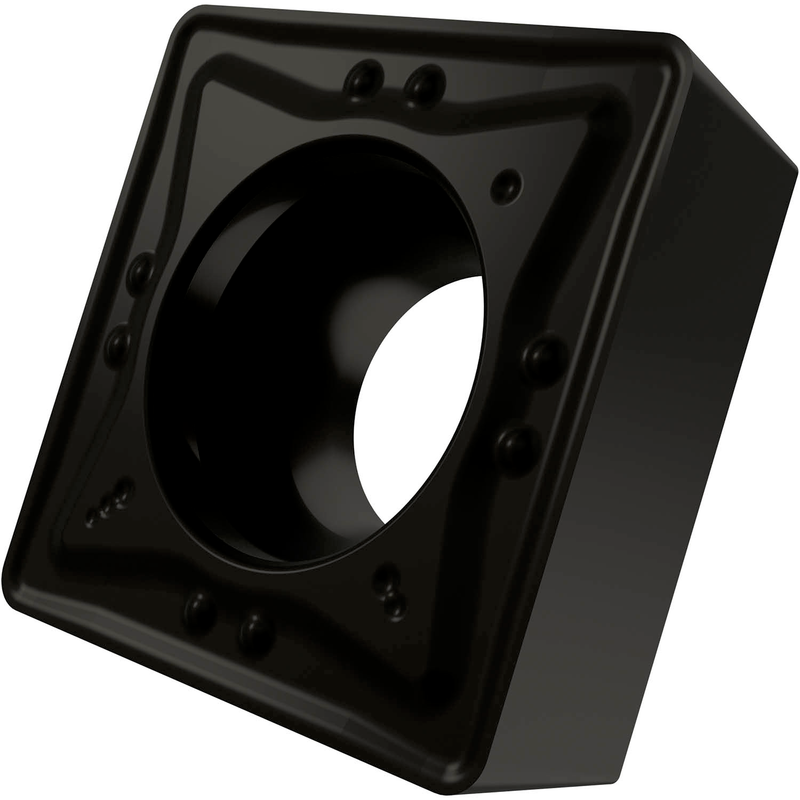

SCMT 432-RM:T5315
SCMT 432-RM:T5315

SCMT 432-RM:T5315

UGC DOR6755765
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$18.97 CAD - $18.97 CAD
$18.97 CAD
$18.97 CAD - $18.97 CAD
$18.97 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, carrée avec un angle de dépouille de 7°, un diamètre de cercle inscrit de 1/2", une épaisseur de 3/16", un rayon de bec de 1/32" et une précision d'indexage selon la classe de tolérance ISO M, brise-copeaux RM, en nuance T5315, un carbure WC-Co revêtu MT-CVD dans la gamme ISO K10-K25, pour l'usinage fin à lourd des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)SCMT 432-RM:T5315
Product Name (ISO)SCMT 120408E-RM:T5315
GradeT5315
Chipbreaker (CBMD)RM
Product Number6755765
Product FamilySCMT
Insert Geometry
Insert DesignSCMT
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.177"
Depth of Cut Max — mm (APMX)4.5 mm
Tool Information
Reference Numbers
EDP Number6755765
EAN3603602911315
File Type Download
SCMT 432-RM:T5315 — Line Drawing PDF Download
