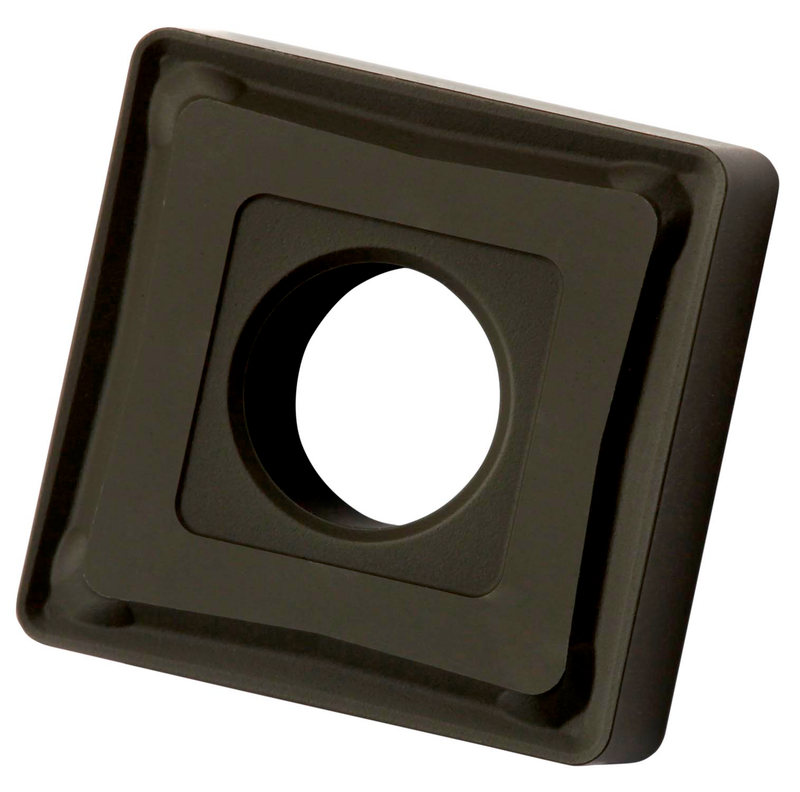

SNMG 432-M:T5315
SNMG 432-M:T5315

SNMG 432-M:T5315

UGC DOR6755770
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.61 CAD - $13.61 CAD
$13.61 CAD
$13.61 CAD - $13.61 CAD
$13.61 CAD

Vendu en lots de : 10

Plaquette négative double face, carrée, avec un diamètre de cercle inscrit de 12,7 mm (1/2"), épaisseur de 4,76 mm (3/16"), rayon de bec de 0,79 mm (1/32") et précision d'indexage selon la classe de tolérance ISO M, brise-copeaux M, en nuance T5315, un carbure WC-Co revêtu MT-CVD dans la plage ISO K10-K25, pour l'usinage de la fonte du semi-finition à l'ébauche

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMG 432-M:T5315
Product Name (ISO)SNMG 120408E-M:T5315
GradeT5315
Chipbreaker (CBMD)M
Product Number6755770
Product FamilyGNIS
Insert Geometry
Insert DesignGNMS
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.236"
Depth of Cut Max — mm (APMX)6.0 mm
Tool Information
Reference Numbers
EDP Number6755770
EAN3603602911360
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Usage principal
H — Hardened Materials Utilisation possible
File Type Download
SNMG 432-M:T5315 — Line Drawing PDF Download
