TCMT 32.52-RM:T5315
TCMT 32.52-RM:T5315

TCMT 32.52-RM:T5315

UGC DOR6755781
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.19 CAD - $14.19 CAD
$14.19 CAD
$14.19 CAD - $14.19 CAD
$14.19 CAD

Vendu en lots de : 10

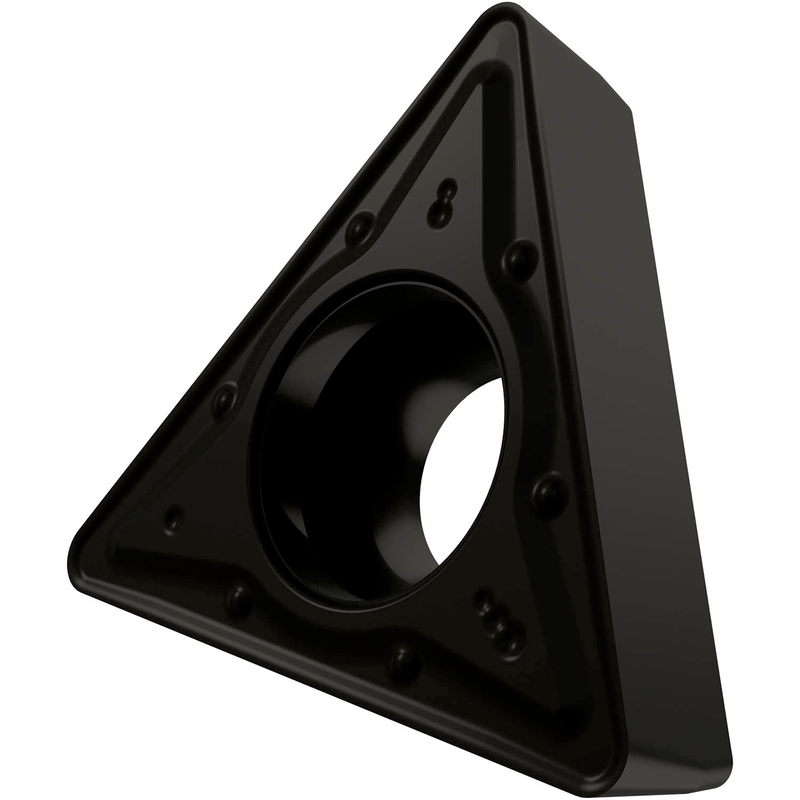

Plaquette positive simple-face à 7° d'angle de dépouille, triangulaire, diamètre du cercle inscrit de 3/8", 5/32" d'épaisseur, rayon de pointe de 1/32" et précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux RM, en nuance T5315, un carbure WC-Co revêtu MT-CVD dans la gamme ISO K10-K25, pour l'usinage du primaire à lourd des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)TCMT 32.52-RM:T5315
Product Name (ISO)TCMT 16T308E-RM:T5315
GradeT5315
Chipbreaker (CBMD)RM
Product Number6755781
Product FamilyCMCT
Insert Geometry
Insert DesignCMTC
Insert Shape Code (SC)T - triangulaire 60° angle inclus
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.157"
Depth of Cut Max — mm (APMX)4.0 mm
Tool Information
Reference Numbers
EDP Number6755781
EAN3603602911476
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Usage principal
H — Hardened Materials Utilisation possible
File Type Download

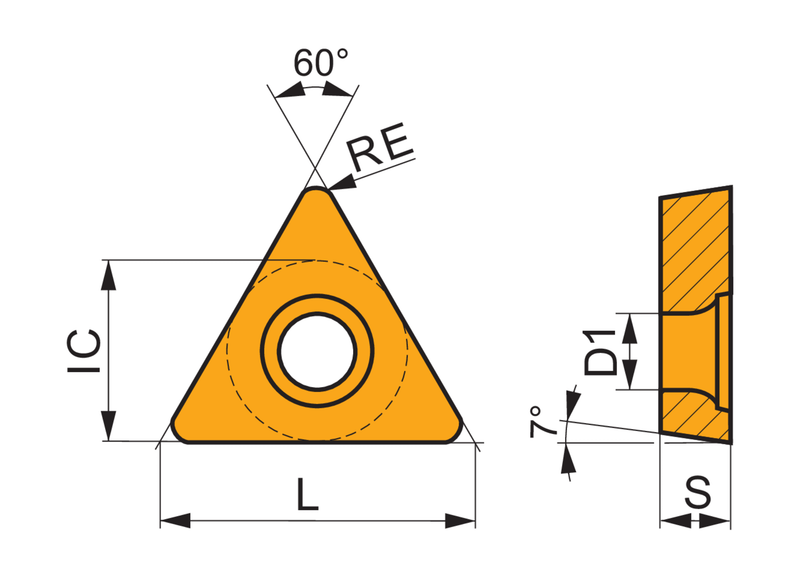

TCMT 32.52-RM:T5315 — Line Drawing PDF Download
