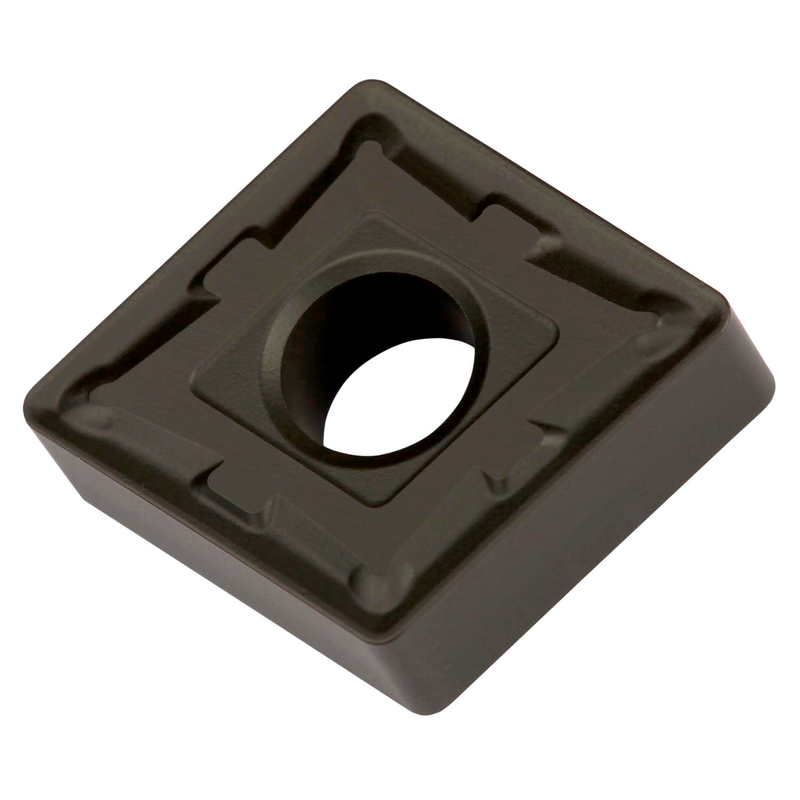

CNMG 432W-M:T5315
CNMG 432W-M:T5315

CNMG 432W-M:T5315

UGC DOR6755796
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.79 CAD - $15.79 CAD
$15.79 CAD
$15.79 CAD - $15.79 CAD
$15.79 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde 80° avec diamètre de cercle inscrit de 1/2", épaisseur de 3/16", rayon de bec de 1/32", précision de positionnement selon la classe de tolérance ISO M, brise-copeaux M avec conception de lèvre de finition WIPER, en nuance T5315, un carbure WC-Co revêtu MT-CVD, pour l'usinage de finition à l'usinage lourd

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMG 432W-M:T5315
Product Name (ISO)CNMG 120408W-M:T5315
GradeT5315
Chipbreaker (CBMD)O-H
Product Number6755796
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - angle inclus rhombique de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.157"
Depth of Cut Max — mm (APMX)4.0 mm
Tool Information
Reference Numbers
EDP Number6755796
EAN3603602911629
File Type Download
CNMG 432W-M:T5315 — Line Drawing PDF Download
