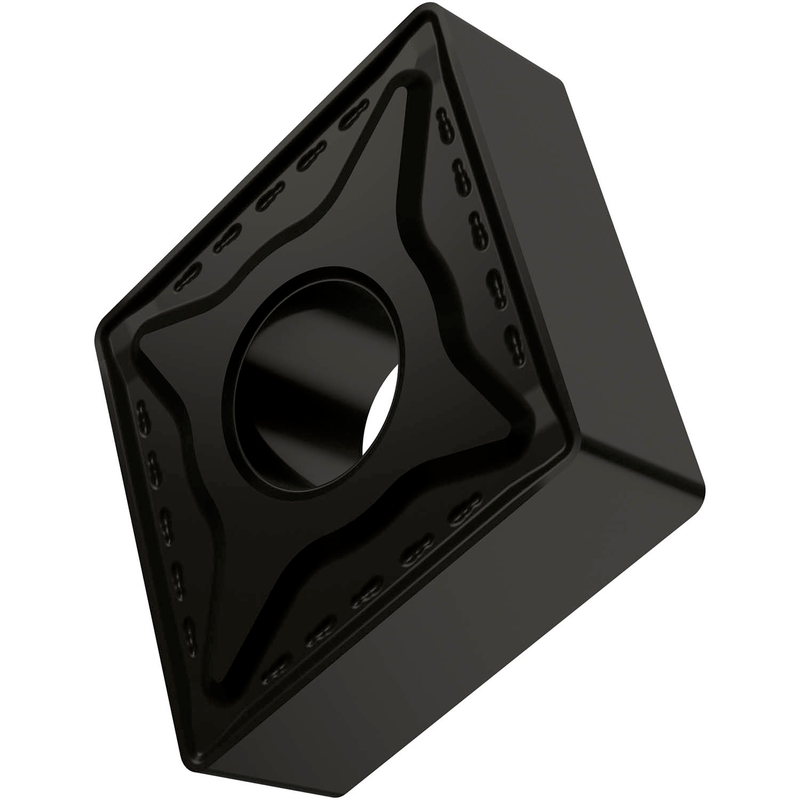

CNMG 642-RM:T5315
CNMG 642-RM:T5315

CNMG 642-RM:T5315

UGC DOR6755806
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$30.26 CAD - $30.26 CAD
$30.26 CAD
$30.26 CAD - $30.26 CAD
$30.26 CAD

Vendu en lots de : 10

Plaquette négative double-face, rhomboïde 80° avec diamètre de cercle inscrit de 3/4", épaisseur de 1/4", rayon de bec de 1/32" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux RM, en nuance T5315, un carbure WC-Co revêtu MT-CVD de gamme ISO K10-K25, pour l'usinage moyen à lourd de fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMG 642-RM:T5315
Product Name (ISO)CNMG 190608E-RM:T5315
GradeT5315
Chipbreaker (CBMD)RM
Product Number6755806
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - angle inclus rhombique de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.394"
Depth of Cut Max — mm (APMX)10.0 mm
Tool Information
Reference Numbers
EDP Number6755806
EAN3603602911728
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Usage principal
File Type Download
CNMG 642-RM:T5315 — Line Drawing PDF Download
