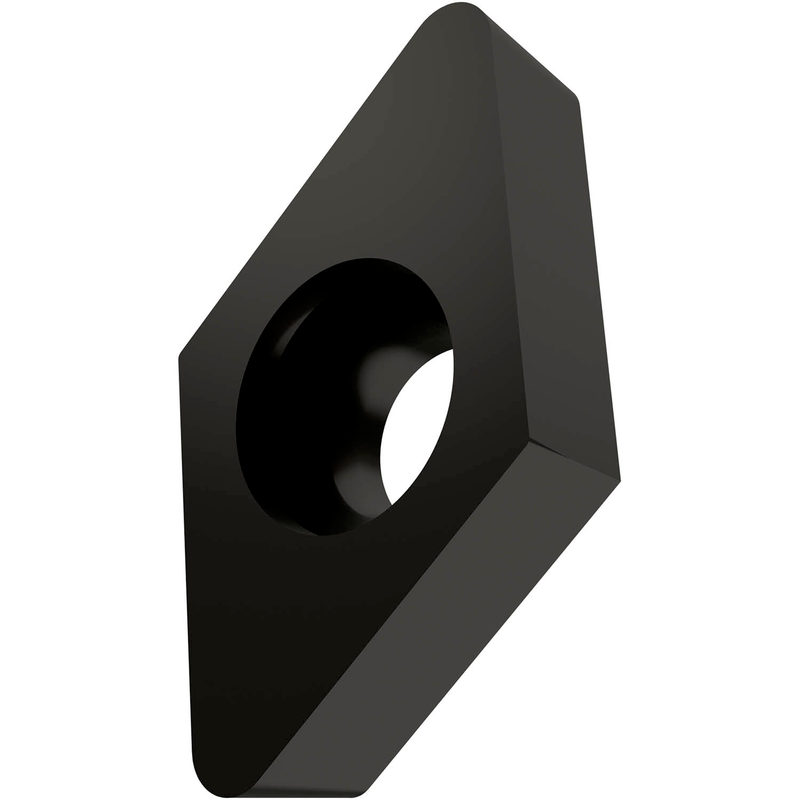

DCMW 21.50.5:T5305
DCMW 21.50.5:T5305

DCMW 21.50.5:T5305

UGC DOR6755817
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.21 CAD - $12.21 CAD
$12.21 CAD
$12.21 CAD - $12.21 CAD
$12.21 CAD

Vendu en lots de : 10

Plaquette positive simple face, rhomboïde 55° avec dépouille 7°, diamètre du cercle inscrit de 1/4", épaisseur 3/32", rayon de bec de 1/128" et précision de positionnement selon la classe de tolérance ISO M, en nuance T5305, un carbure WC-Co revêtu MT-CVD de la gamme ISO K01-K15, pour la finition des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)DCMW 21.50.5:T5305
Product Name (ISO)DCMW 070202:T5305
GradeT5305
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755817
Product FamilyCMVD
Insert Geometry
Insert DesignDCMW
Insert Shape Code (SC)D - angle inclus de 55° rhombique
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Reference Numbers
EDP Number6755817
EAN3603602911834
File Type Download
DCMW 21.50.5:T5305 — Line Drawing PDF Download
