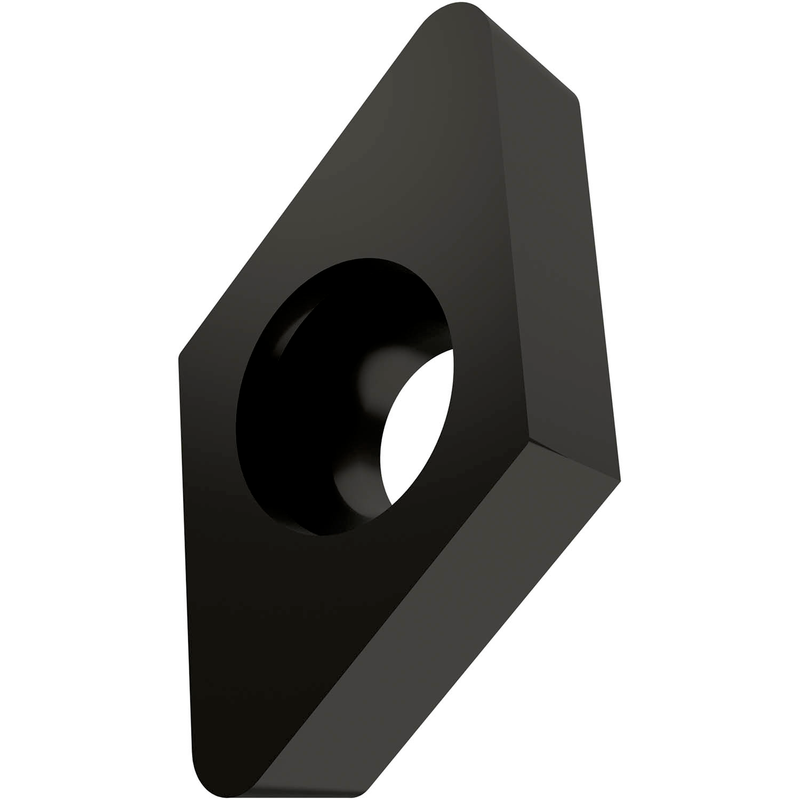

DCMW 21.51:T5305
DCMW 21.51:T5305

DCMW 21.51:T5305

UGC DOR6755818
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.47 CAD - $11.47 CAD
$11.47 CAD
$11.47 CAD - $11.47 CAD
$11.47 CAD

Vendu en lots de : 10

Plaquette positive simple face, rhomboïde 55° avec dépouille 7°, diamètre du cercle inscrit de 1/4", épaisseur 3/32", rayon de bec 1/64" et précision d'indexage selon la classe de tolérance ISO M, en nuance T5305, un carbure WC-Co revêtu MT-CVD dans la gamme ISO K01-K15, pour l'usinage fin des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)DCMW 21.51:T5305
Product Name (ISO)DCMW 070204:T5305
GradeT5305
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755818
Product FamilyDCMW
Insert Geometry
Insert DesignMRCD
Insert Shape Code (SC)D - angle inclus rhomboïdal 55°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Reference Numbers
EDP Number6755818
EAN3603602911841
File Type Download
DCMW 21.51:T5305 — Line Drawing PDF Download
