RCMW 0803MO:T5305
RCMW 0803MO:T5305

RCMW 0803MO:T5305

UGC DOR6755831
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.04 CAD - $11.04 CAD
$11.04 CAD
$11.04 CAD - $11.04 CAD
$11.04 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, ronde avec dépouille de 7°, diamètre de 8mm, épaisseur de 3.18mm, précision d'indexage selon la classe de tolérance ISO-M, en nuance T5305, un carbure WC-Co revêtu MT-CVD dans la gamme ISO K01-K15, pour la finition de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RCMW 0803MO:T5305
GradeT5305
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755831
Product FamilyRCMW
Insert Geometry
Insert DesignCRMS
Insert Shape Code (SC)R - arrondi
Insert Geometry
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Reference Numbers
EDP Number6755831
EAN3603602911971
File Type Download

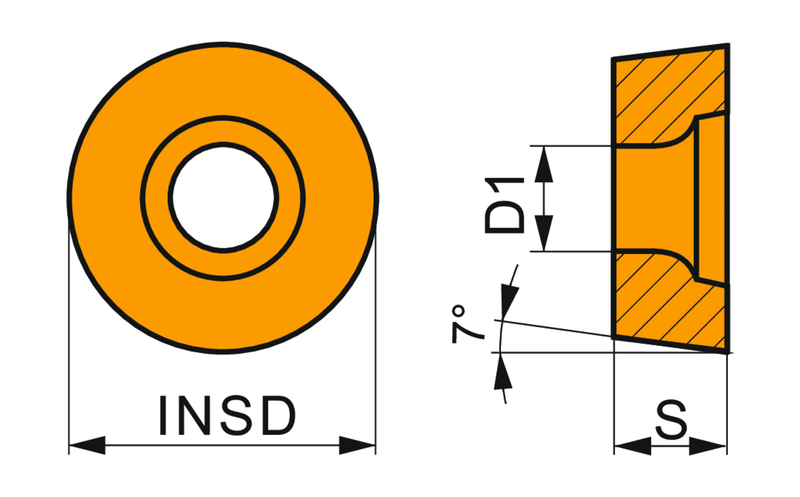

RCMW 0803MO:T5305 — Line Drawing PDF Download
