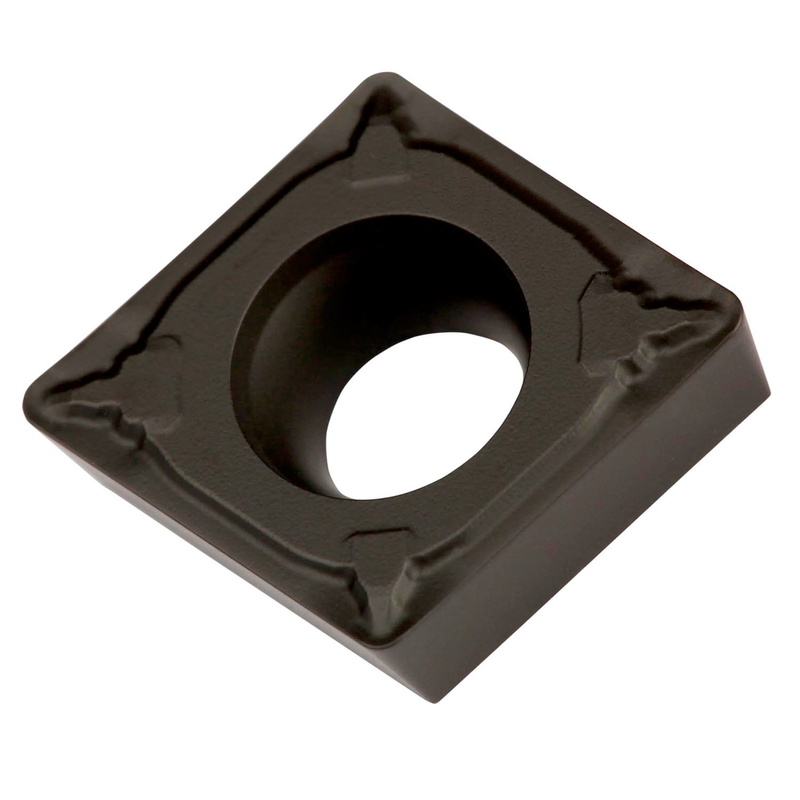

CCMT 431-UR:T5315
CCMT 431-UR:T5315

CCMT 431-UR:T5315

UGC DOR6755839
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.54 CAD - $16.54 CAD
$16.54 CAD
$16.54 CAD - $16.54 CAD
$16.54 CAD

Vendu en lots de : 10

Plaquette positive simple face, rhomboïde 80° avec dépouille 7°, diamètre du cercle inscrit de 1/2", épaisseur de 3/16", rayon de bec de 1/64" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux UR, en nuance T5315, un carbure WC-Co revêtu MT-CVD de la gamme ISO K10-K25, pour l'usinage fin à lourd des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)CCMT 431-UR:T5315
Product Name (ISO)CCMT 120404E-UR:T5315
GradeT5315
Chipbreaker (CBMD)VOUS
Product Number6755839
Product FamilyCCMG
Insert Geometry
Insert DesignCCMG
Insert Shape Code (SC)C - angle d'inclinaison de 80° pour rhombe
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number6755839
EAN3603602912053
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Usage principal
File Type Download
CCMT 431-UR:T5315 — Line Drawing PDF Download
