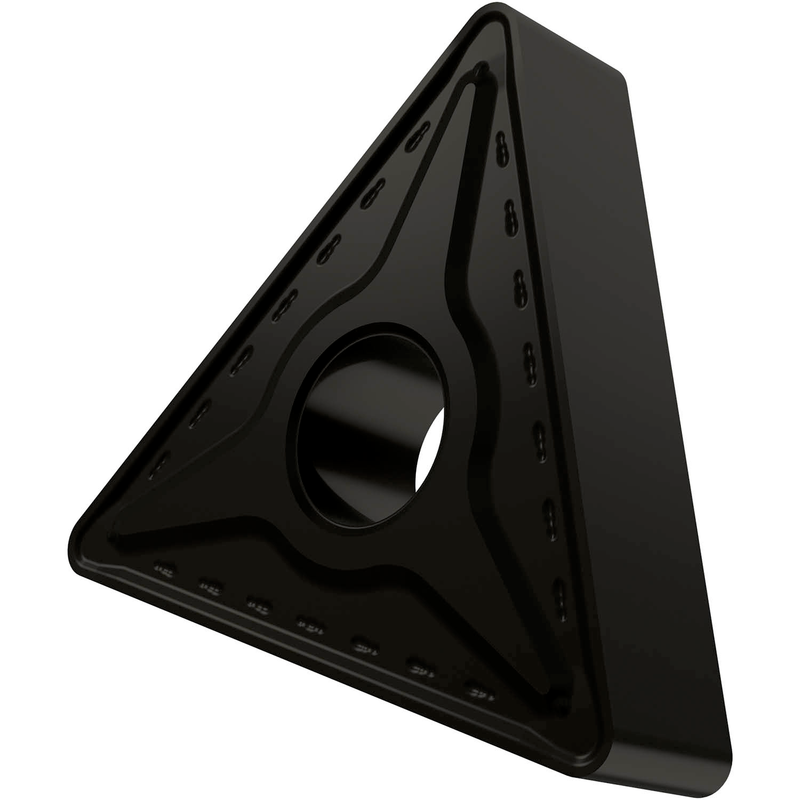

TNMG 333-RM:T5305
TNMG 333-RM:T5305

TNMG 333-RM:T5305

UGC DOR6755845
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.64 CAD - $11.64 CAD
$11.64 CAD
$11.64 CAD - $11.64 CAD
$11.64 CAD

Vendu en lots de : 10

Plaquette négative double face, triangulaire avec diamètre du cercle inscrit de 3/8", épaisseur de 3/16", rayon de bec de 3/64" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux RM, en nuance T5305, un carbure WC-Co revêtu MT-CVD dans la gamme ISO K01-K15, pour usinage moyen à lourd de fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)TNMG 333-RM:T5305
Product Name (ISO)TNMG 160412E-RM:T5305
GradeT5305
Chipbreaker (CBMD)RM
Product Number6755845
Product FamilyTVNMG
Insert Geometry
Insert DesignLe TNMG
Insert Shape Code (SC)T - triangulaire 60° angle inclus
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.209"
Depth of Cut Max — mm (APMX)5.3 mm
Tool Information
Reference Numbers
EDP Number6755845
EAN3603602912114
Material Group Suitability
P — Steel and Cast Steel Usage possible
K — Cast Iron Usage principal
File Type Download
TNMG 333-RM:T5305 — Line Drawing PDF Download
