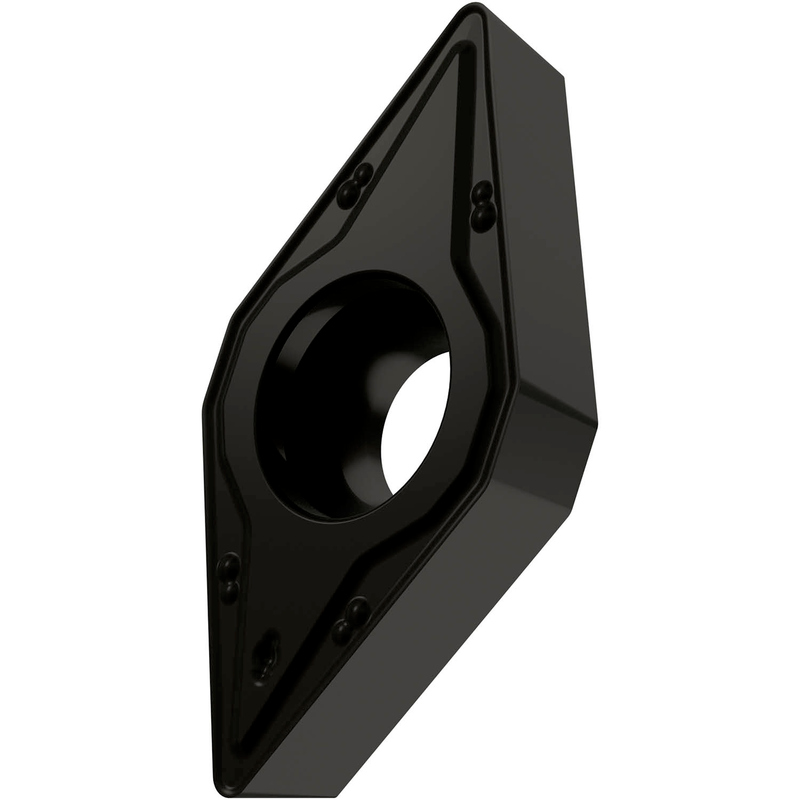

DCMT 32.51-RM:T5315
DCMT 32.51-RM:T5315

DCMT 32.51-RM:T5315

UGC DOR6755846
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.54 CAD - $15.54 CAD
$15.54 CAD
$15.54 CAD - $15.54 CAD
$15.54 CAD

Vendu en lots de : 10

Plaquette positive simple face, rhomboïde 55° avec dépouille 7°, diamètre du cercle inscrit de 3/8", épaisseur 5/32", rayon de bec 1/64" et précision d'indexage selon la classe de tolérance ISO M, brise-copeaux RM, en nuance T5315, un carbure WC-Co revêtu MT-CVD dans la gamme ISO K10-K25, pour l'usinage léger à lourd des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)DCMT 32.51-RM:T5315
Product Name (ISO)DCMT 11T304E-RM:T5315
GradeT5315
Chipbreaker (CBMD)RM
Product Number6755846
Product FamilyGDCT
Insert Geometry
Insert DesignDCMT
Insert Shape Code (SC)D - angle inclus de 55° rhombique
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.13"
Depth of Cut Max — mm (APMX)3.3 mm
Tool Information
Reference Numbers
EDP Number6755846
EAN3603602912121
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Usage principal
H — Hardened Materials Utilisation possible
File Type Download
DCMT 32.51-RM:T5315 — Line Drawing PDF Download
