RNMG 43-08:T5305
RNMG 43-08:T5305

RNMG 43-08:T5305

UGC DOR6755850
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.79 CAD - $11.79 CAD
$11.79 CAD
$11.79 CAD - $11.79 CAD
$11.79 CAD

Vendu en lots de : 10

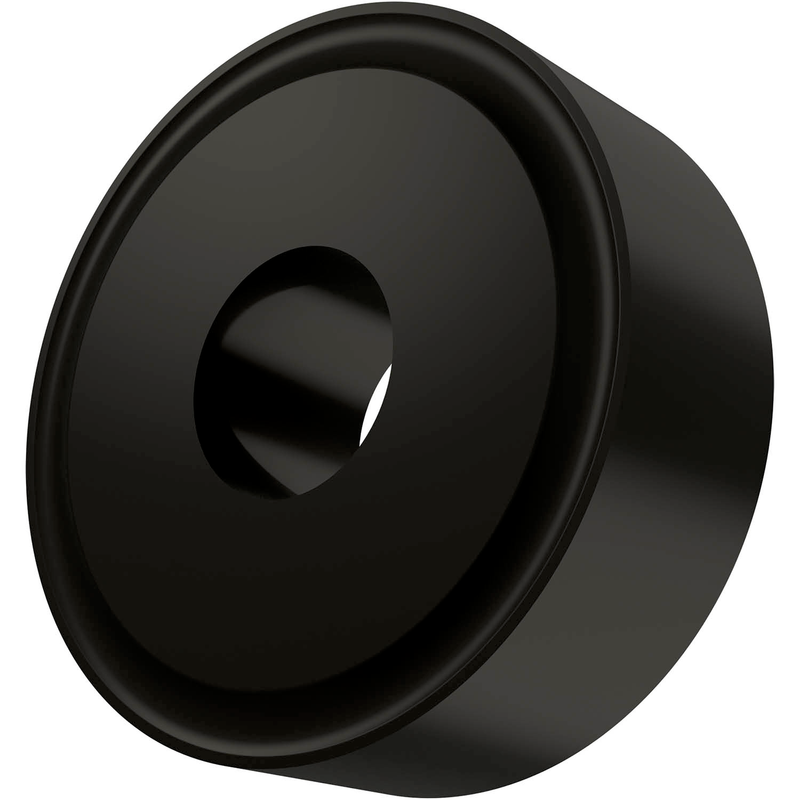

Plaquette de tournage négative double face, ronde de 1/2" de diamètre, 3/16" d'épaisseur, précision d'indexage selon la classe de tolérance ISO M, brise-copeaux 08, en nuance T5305, un carbure WC-Co revêtu MT-CVD, pour l'usinage lourd à moyen

For more information about this product, click here

Identification
Ordering Code (ANSI)RNMG 43-08:T5305
Product Name (ISO)RNMG 120400E-08:T5305
GradeT5305
Chipbreaker (CBMD)8
Product Number6755850
Product FamilyRNMG
Insert Geometry
Insert DesignRNMG
Insert Shape Code (SC)R - rond
Insert Geometry
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Depth of Cut Max — in (APMX)0.189"
Depth of Cut Max — mm (APMX)4.8 mm
Tool Information
Reference Numbers
EDP Number6755850
EAN3603602912169
File Type Download

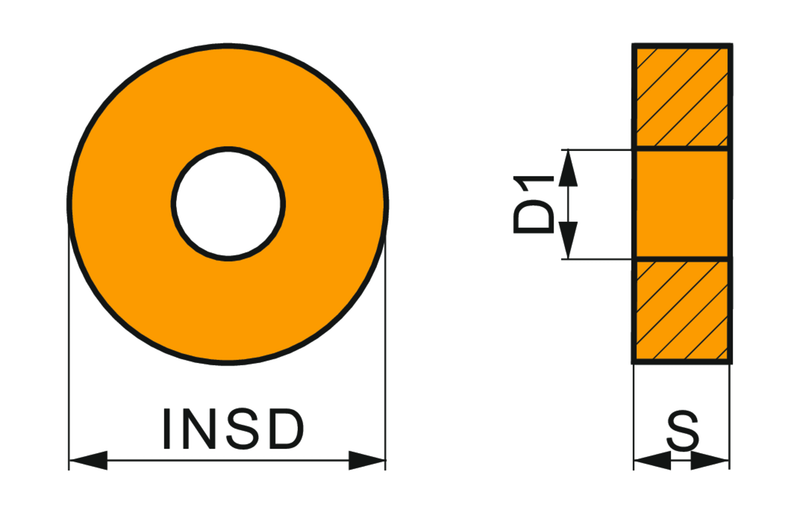

RNMG 43-08:T5305 — Line Drawing PDF Download
