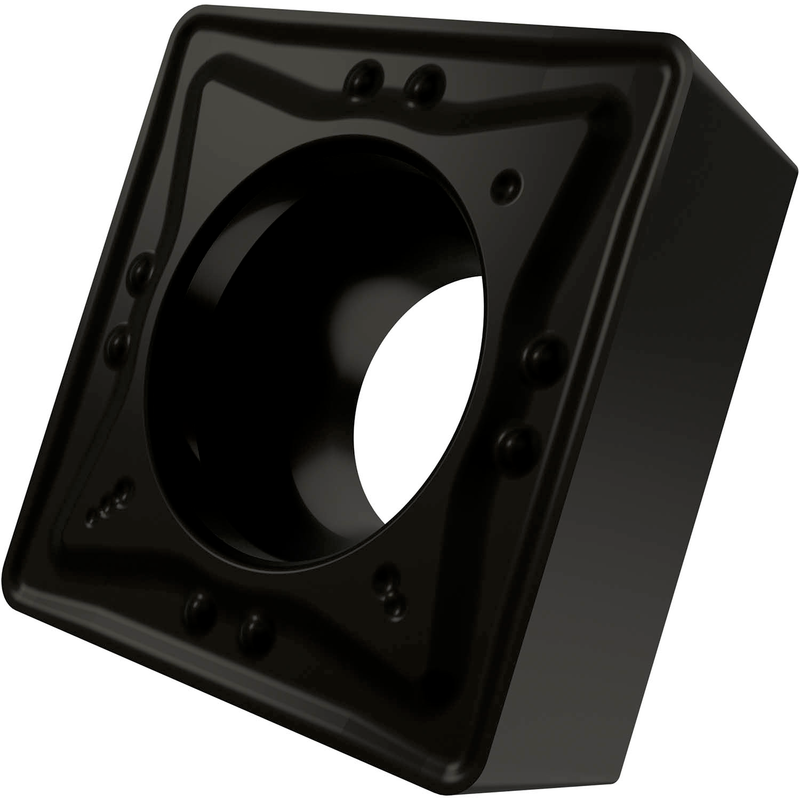

SCMT 432-RM:T5305
SCMT 432-RM:T5305

SCMT 432-RM:T5305

UGC DOR6755853
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$18.97 CAD - $18.97 CAD
$18.97 CAD
$18.97 CAD - $18.97 CAD
$18.97 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, carrée avec dépouille de 7°, diamètre du cercle inscrit de 12,7 mm (1/2"), épaisseur de 4,76 mm (3/16"), rayon de pointe de 0,79 mm (1/32") et précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux RM, en nuance T5305, un carbure WC-Co revêtu MT-CVD de la gamme ISO K01-K15, pour l'usinage léger à lourd de fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)SCMT 432-RM:T5305
Product Name (ISO)SCMT 120408E-RM:T5305
GradeT5305
Chipbreaker (CBMD)RM
Product Number6755853
Product FamilySCMT
Insert Geometry
Insert DesignSCMT
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.177"
Depth of Cut Max — mm (APMX)4.5 mm
Tool Information
Reference Numbers
EDP Number6755853
EAN3603602912190
File Type Download
SCMT 432-RM:T5305 — Line Drawing PDF Download
