TCMW 32.51:T5305
TCMW 32.51:T5305

TCMW 32.51:T5305

UGC DOR6755883
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.19 CAD - $14.19 CAD
$14.19 CAD
$14.19 CAD - $14.19 CAD
$14.19 CAD

Vendu en lots de : 10

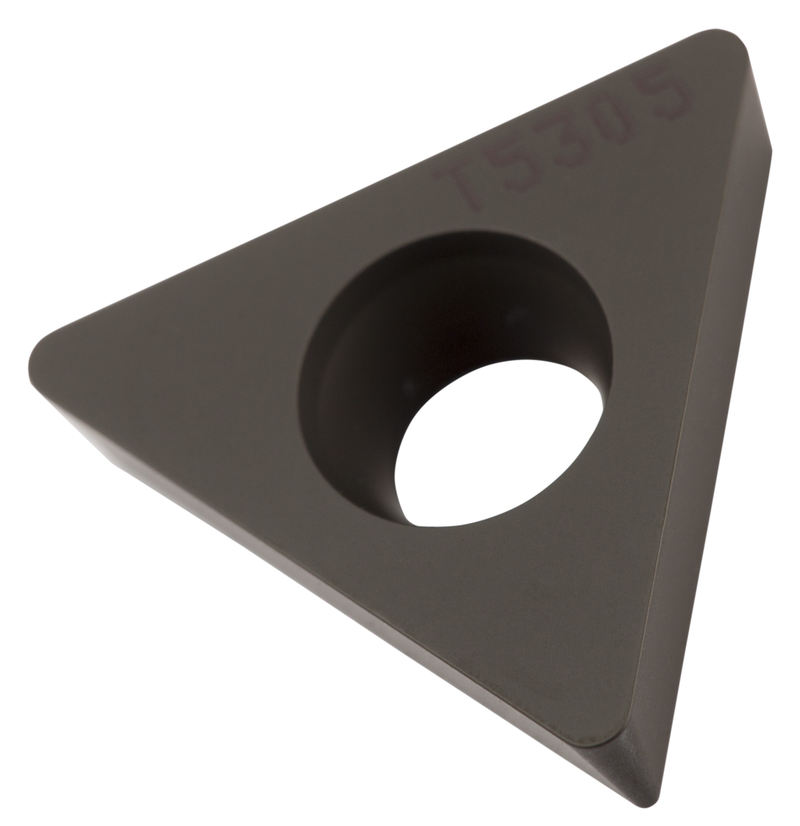

Plaquette de tournage positive simple face, triangulaire avec dépouille de 7°, diamètre du cercle inscrit de 3/8", épaisseur de 5/32", rayon de bec de 1/64" et précision de positionnement selon la classe de tolérance ISO M, en nuance T5305, un carbure WC-Co revêtu MT-CVD dans la plage ISO K01-K15, pour l'usinage fin à moyen des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)TCMW 32.51:T5305
Product Name (ISO)TCMW 16T304:T5305
GradeT5305
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755883
Product FamilyTCMW
Insert Geometry
Insert DesignTCMW
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.189"
Depth of Cut Max — mm (APMX)4.8 mm
Tool Information
Reference Numbers
EDP Number6755883
EAN3603602912497
File Type Download
TCMW 32.51:T5305 — Line Drawing PDF Download
