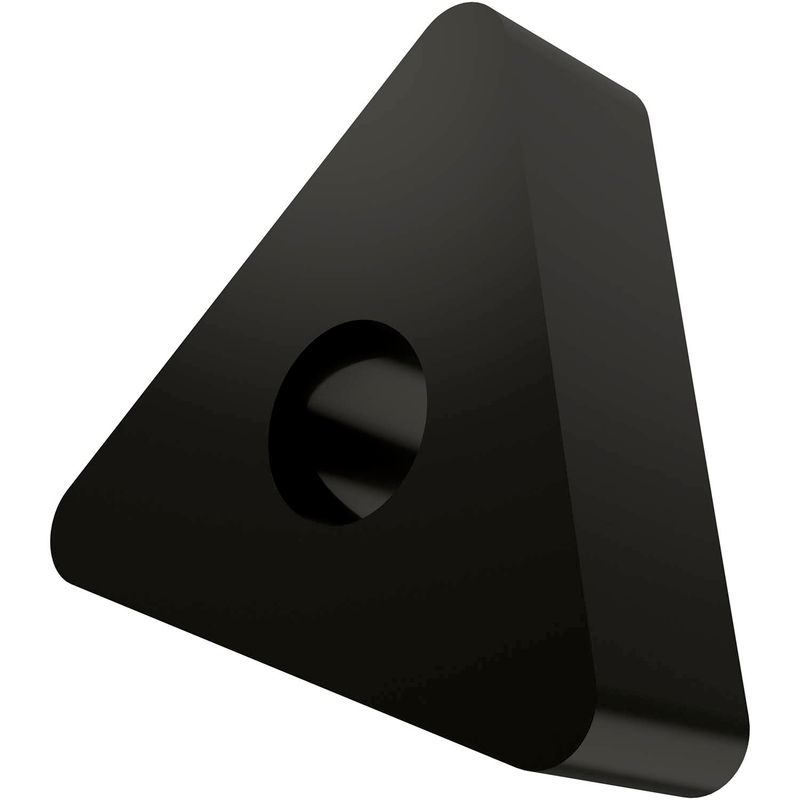

TNMA 331:T5305
TNMA 331:T5305

TNMA 331:T5305

UGC DOR6755885
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.64 CAD - $11.64 CAD
$11.64 CAD
$11.64 CAD - $11.64 CAD
$11.64 CAD

Vendu en lots de : 10

Plaquette négative double face, triangulaire avec diamètre du cercle inscrit de 3/8", 3/16" d'épaisseur, rayon de bec de 1/64" et précision d'indexage selon la classe de tolérance ISO M, en nuance T5305, un carbure WC-Co revêtu MT-CVD dans la gamme ISO K01-K15, pour l'usinage fin à moyen des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)TNMA 331:T5305
Product Name (ISO)TNMA 160404:T5305
GradeT5305
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755885
Product FamilyANMT
Insert Geometry
Insert DesignANMT
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.189"
Depth of Cut Max — mm (APMX)4.8 mm
Tool Information
Reference Numbers
EDP Number6755885
EAN3603602912510
File Type Download
TNMA 331:T5305 — Line Drawing PDF Download
