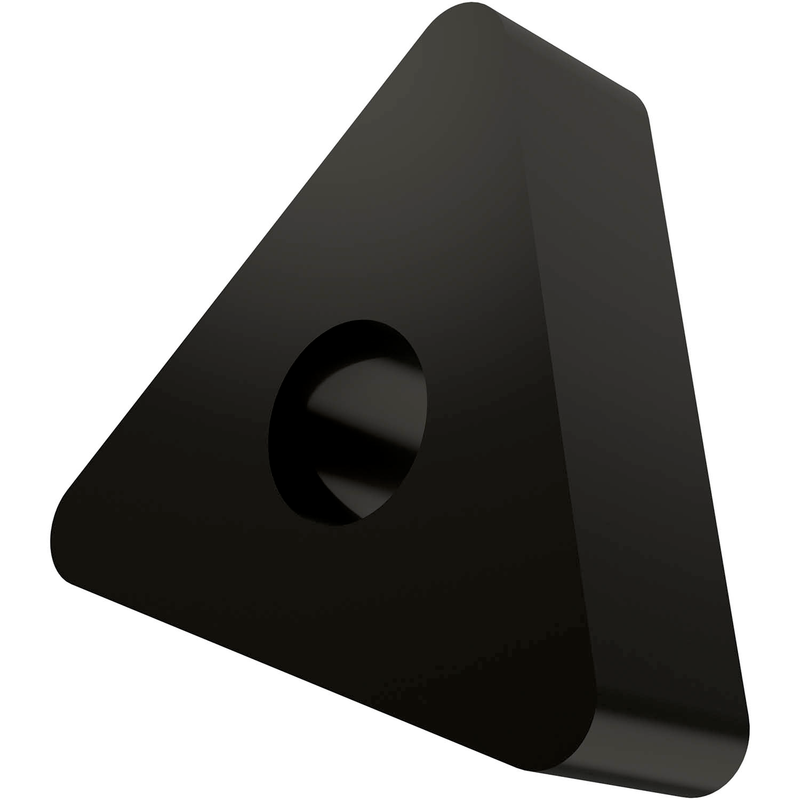

TNMA 333:T5305
TNMA 333:T5305

TNMA 333:T5305

UGC DOR6755888
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.64 CAD - $11.64 CAD
$11.64 CAD
$11.64 CAD - $11.64 CAD
$11.64 CAD

Vendu en lots de : 10

Plaquette négative double face pour tournage, triangulaire avec diamètre du cercle inscrit de 3/8", épaisseur de 3/16", rayon de bec de 3/64" et précision d'indexage selon la classe de tolérance ISO-M, en nuance T5305, un carbure WC-Co revêtu MT-CVD dans la gamme ISO K01-K15, pour l'usinage de finition à moyen des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)TNMA 333:T5305
Product Name (ISO)TNMA 160412:T5305
GradeT5305
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755888
Product FamilyGTNMA
Insert Geometry
Insert DesignANMT
Insert Shape Code (SC)T - angle de 60° inclus
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.189"
Depth of Cut Max — mm (APMX)4.8 mm
Tool Information
Reference Numbers
EDP Number6755888
EAN3603602912541
File Type Download
TNMA 333:T5305 — Line Drawing PDF Download
