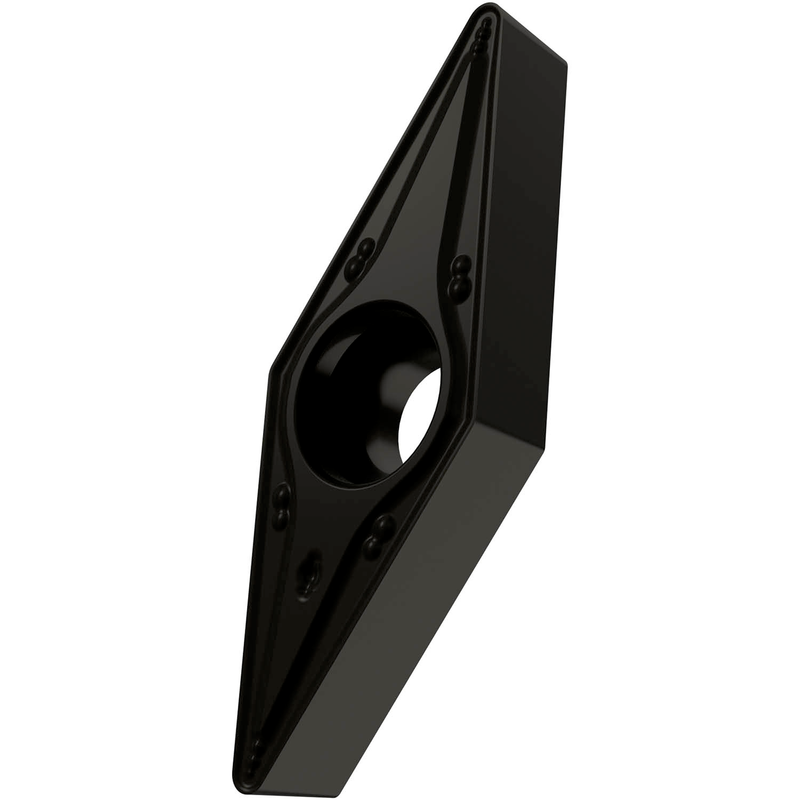

VBMT 331-RM:T5305
VBMT 331-RM:T5305

VBMT 331-RM:T5305

UGC DOR6755900
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.14 CAD - $22.14 CAD
$22.14 CAD
$22.14 CAD - $22.14 CAD
$22.14 CAD

Vendu en lots de : 10

Plaquette positive simple face, rhomboïde 35° avec dépouille 5°, diamètre du cercle inscrit de 3/8", épaisseur 3/16", rayon de bec 1/64" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux RM, en nuance T5305, un carbure WC-Co revêtu MT-CVD de la gamme ISO K01-K15, pour l'usinage fin à lourd des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)VBMT 331-RM:T5305
Product Name (ISO)VBMT 160404E-RM:T5305
GradeT5305
Chipbreaker (CBMD)RM
Product Number6755900
Product FamilyVBMT
Insert Geometry
Insert DesignVBMT
Insert Shape Code (SC)V - angle inclus rhombique de 35°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.142"
Depth of Cut Max — mm (APMX)3.6 mm
Tool Information
Reference Numbers
EDP Number6755900
EAN3603602912664
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Usage principal
H — Hardened Materials Utilisation possible
File Type Download
VBMT 331-RM:T5305 — Line Drawing PDF Download
