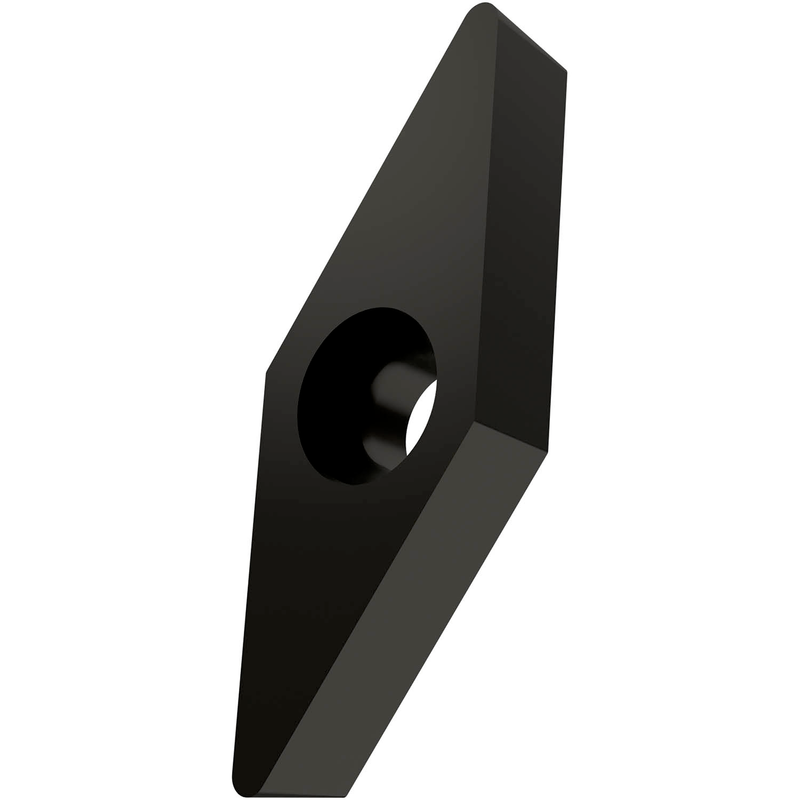

VCMW 221:T5305
VCMW 221:T5305

VCMW 221:T5305

UGC DOR6755903
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.93 CAD - $19.93 CAD
$19.93 CAD
$19.93 CAD - $19.93 CAD
$19.93 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 35° avec dépouille 7°, diamètre du cercle inscrit 1/4", épaisseur 1/8", rayon de bec 1/64" et précision de positionnement selon la classe de tolérance ISO M, en nuance T5305, un carbure WC-Co revêtu MT-CVD dans la gamme ISO K01-K15, pour la finition de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI)VCMW 221:T5305
Product Name (ISO)VCMW 110304:T5305
GradeT5305
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755903
Product FamilyCVCM
Insert Geometry
Insert DesignVCMW
Insert Shape Code (SC)V - losange 35° angle inclus
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.094"
Depth of Cut Max — mm (APMX)2.4 mm
Tool Information
Reference Numbers
EDP Number6755903
EAN3603602912695
File Type Download
VCMW 221:T5305 — Line Drawing PDF Download
