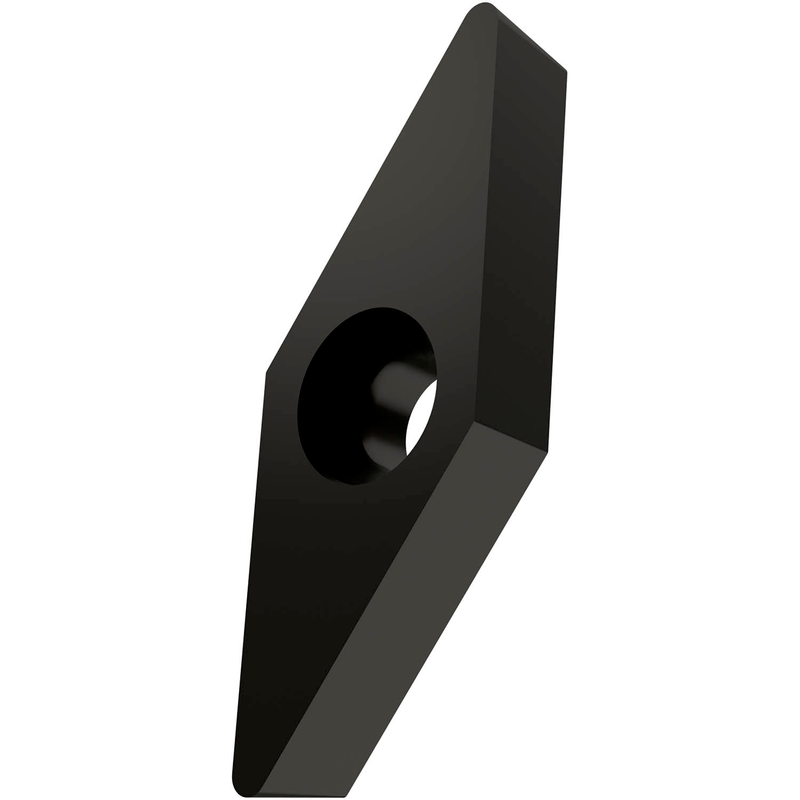

VCMW 331:T5305
VCMW 331:T5305

VCMW 331:T5305

UGC DOR6755904
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$21.97 CAD - $21.97 CAD
$21.97 CAD
$21.97 CAD - $21.97 CAD
$21.97 CAD

Vendu en lots de : 10

Plaquette positive simple face, rhomboïde 35° avec un angle de dépouille de 7°, un diamètre de cercle inscrit de 3/8", une épaisseur de 3/16", un rayon de bec de 1/64" et une précision de positionnement selon la classe de tolérance ISO M, en nuance T5305, un carbure WC-Co revêtu MT-CVD dans la gamme ISO K01-K15, pour la finition de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI)VCMW 331:T5305
Product Name (ISO)VCMW 160404:T5305
GradeT5305
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755904
Product FamilyMVCM
Insert Geometry
Insert DesignVCMM
Insert Shape Code (SC)V - angle de 35° inclus (rhombe)
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.146"
Depth of Cut Max — mm (APMX)3.7 mm
Tool Information
Reference Numbers
EDP Number6755904
EAN3603602912701
File Type Download
VCMW 331:T5305 — Line Drawing PDF Download
