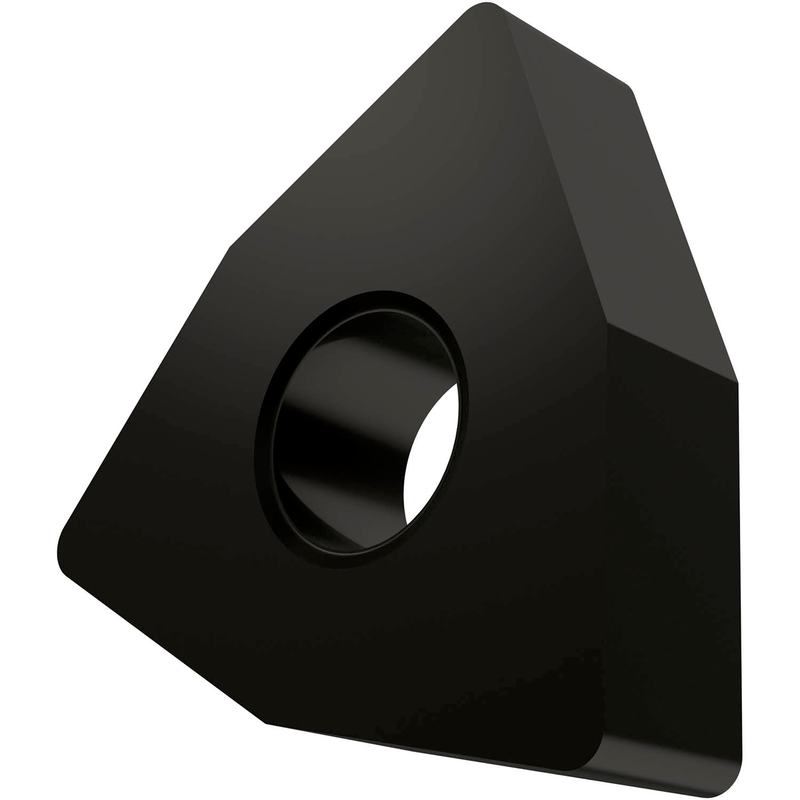

WNMA 432:T5305
WNMA 432:T5305

WNMA 432:T5305

UGC DOR6755908
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.83 CAD - $13.83 CAD
$13.83 CAD
$13.83 CAD - $13.83 CAD
$13.83 CAD

Vendu en lots de : 10

Plaquette négative double face, trigon de 80° avec un diamètre de cercle inscrit de 1/2", 3/16" d'épaisseur, rayon de bec de 1/32" et précision de positionnement selon la classe de tolérance ISO M, en nuance T5305, un carbure WC-Co revêtu MT-CVD dans la gamme ISO K01-K15, pour l'usinage de la fonte, de la finition à l'ébauche

For more information about this product, click here

Identification
Ordering Code (ANSI)WNMA 432:T5305
Product Name (ISO)WNMA 080408:T5305
GradeT5305
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755908
Product FamilyANFM
Insert Geometry
Insert DesignAFNA
Insert Shape Code (SC)W - trigone
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.173"
Depth of Cut Max — mm (APMX)4.4 mm
Tool Information
Reference Numbers
EDP Number6755908
EAN3603602912749
File Type Download
WNMA 432:T5305 — Line Drawing PDF Download
