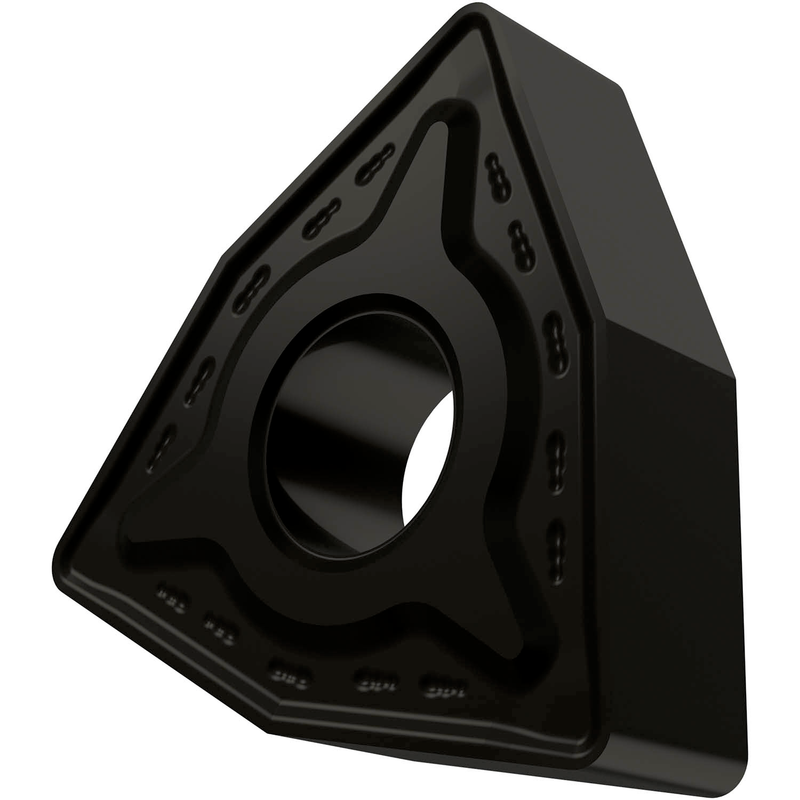

WNMG 434-RM:T5305
WNMG 434-RM:T5305

WNMG 434-RM:T5305

UGC DOR6755917
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.83 CAD - $13.83 CAD
$13.83 CAD
$13.83 CAD - $13.83 CAD
$13.83 CAD

Vendu en lots de : 10

Plaquette négative double-face, trigon 80° avec diamètre de cercle inscrit de 12,7 mm (1/2"), épaisseur de 4,76 mm (3/16"), rayon de bec de 1,59 mm (1/16") et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux RM, en nuance T5305, un carbure WC-Co revêtu MT-CVD dans la plage ISO K01-K15, pour l'usinage moyen à lourd des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)WNMG 434-RM:T5305
Product Name (ISO)WNMG 080416E-RM:T5305
GradeT5305
Chipbreaker (CBMD)RM
Product Number6755917
Product FamilyWNMG
Insert Geometry
Insert DesignWNMG
Insert Shape Code (SC)W - trigonométrique
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Depth of Cut Max — in (APMX)0.197"
Depth of Cut Max — mm (APMX)5.0 mm
Tool Information
Reference Numbers
EDP Number6755917
EAN3603602912831
Material Group Suitability
P — Steel and Cast Steel Usage possible
K — Cast Iron Usage principal
File Type Download
WNMG 434-RM:T5305 — Line Drawing PDF Download
