DCGW 32.52S00420:TB310
DCGW 32.52S00420:TB310

DCGW 32.52S00420:TB310

UGC DOR6755924
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$122.14 CAD - $122.14 CAD
$122.14 CAD
$122.14 CAD - $122.14 CAD
$122.14 CAD

Vendu en lots de : 2

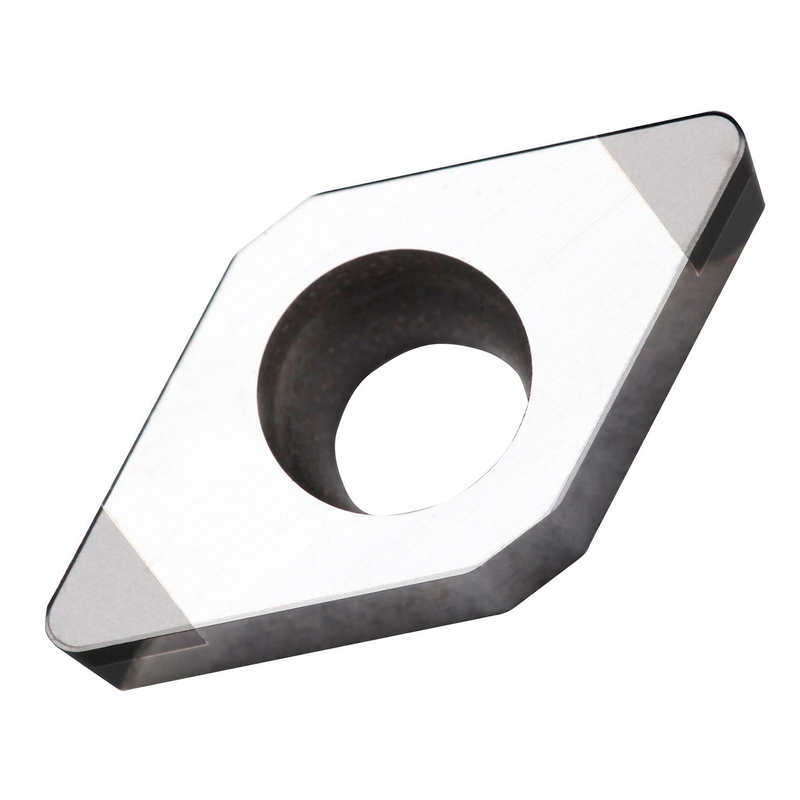

Plaquette de tournage dur avec 2 arêtes CBN sur une face, rhomboïde 55° avec dépouille 7°, diamètre du cercle inscrit de 3/8", épaisseur 5/32", rayon de bec 1/32", précision d'indexage selon la classe de tolérance ISO-G, arêtes de coupe arrondies avec facette T-land -20°/0.004", en nuance TB310, nitrure de bore cubique non revêtu dans la plage ISO H01-H10, pour l'usinage à grande vitesse de matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI)CCGD 32.52S00420:TB310
Product Name (ISO)DCGW 11T308S01020B:TB310
GradeTB310
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755924
Product FamilyDCGW CBN

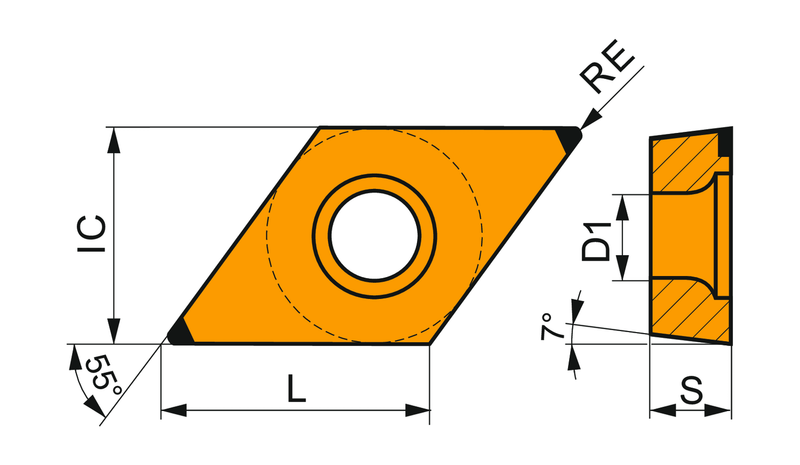

Insert Geometry
Insert DesignCCGD
Insert Shape Code (SC)D - angle d'ouverture 55°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number6755924
EAN3603602912909
File Type Download
DCGW 32.52S00420:TB310 — Line Drawing PDF Download
