DNGA 442S00420:TB310
DNGA 442S00420:TB310

DNGA 442S00420:TB310

UGC DOR6755925
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$131.79 CAD - $131.79 CAD
$131.79 CAD
$131.79 CAD - $131.79 CAD
$131.79 CAD

Vendu en lots de : 2

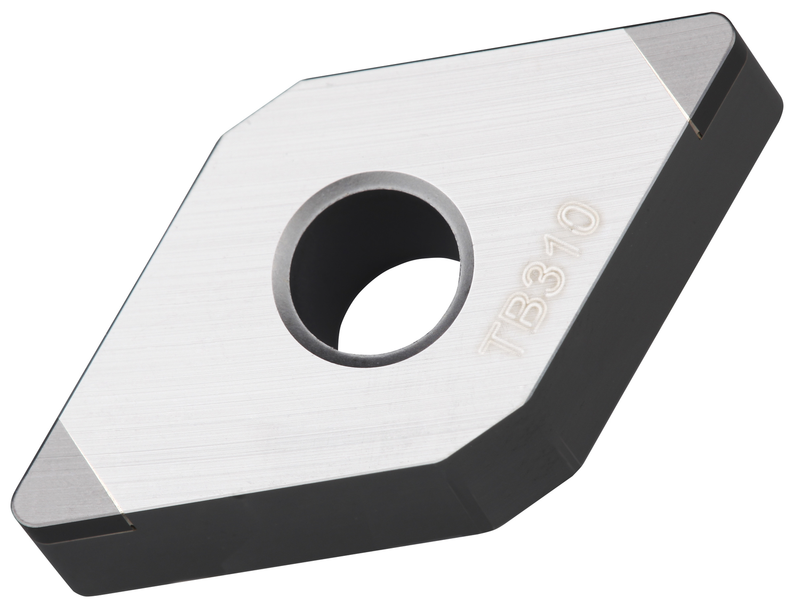

Plaquette pour tournage dur avec 2 coins à pointe CBN sur une face, rhomboïde 55° avec diamètre de cercle inscrit de 1/2", 1/4" d'épaisseur, rayon de bec de 1/32", précision d'indexage selon la classe de tolérance ISO-G, arêtes de coupe arrondies avec facette T-land -20°/0,004", en nuance TB310, un nitrure de bore cubique non revêtu dans la gamme ISO H01-H10, pour l'usinage à grande vitesse de matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI)DNGA 442S00420:TB310
Product Name (ISO)DNGA 150608S01020B:TB310
GradeTB310
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755925
Product FamilyDNGA CBN

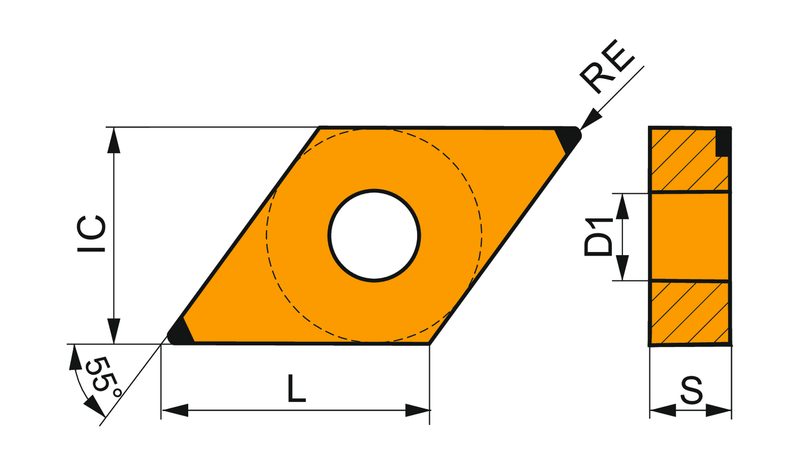

Insert Geometry
Insert DesignDNGA
Insert Shape Code (SC)D - angle embrassé rhombique 55°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number6755925
EAN3603602912916
File Type Download
DNGA 442S00420:TB310 — Line Drawing PDF Download
