TCGW 21.52S00420:TB310
TCGW 21.52S00420:TB310

TCGW 21.52S00420:TB310

UGC DOR6755927
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$191.79 CAD - $191.79 CAD
$191.79 CAD
$191.79 CAD - $191.79 CAD
$191.79 CAD

Vendu en lots de : 2

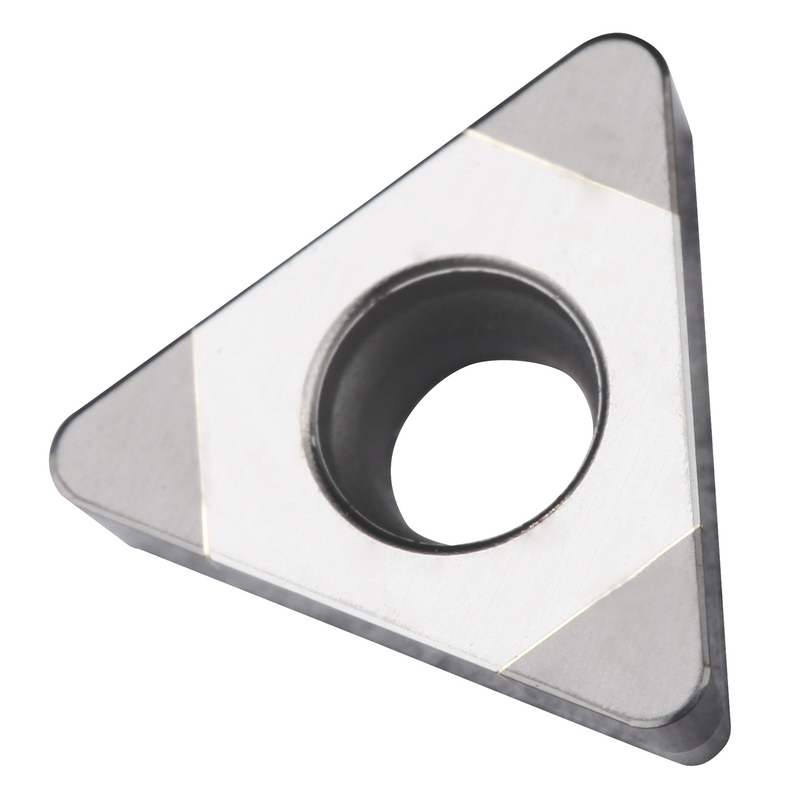

Plaquette pour tournage dur, à 3 arêtes rapportées en nitrure de bore cubique sur une face, triangulaire avec dépouille de 7°, diamètre du cercle inscrit de 1/4", épaisseur de 3/32", rayon de bec de 1/32", précision de positionnement selon la classe de tolérance ISO-G, arêtes de coupe arrondies avec facette T-land -20°/0,004", en nuance TB310, un nitrure de bore cubique non revêtu de la plage ISO H01-H10, pour l'usinage à grande vitesse de matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI)TCGW 21.52S00420:TB310
Product Name (ISO)TCGW 110208S01020C:TB310
GradeTB310
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755927
Product FamilyGTCN GEC

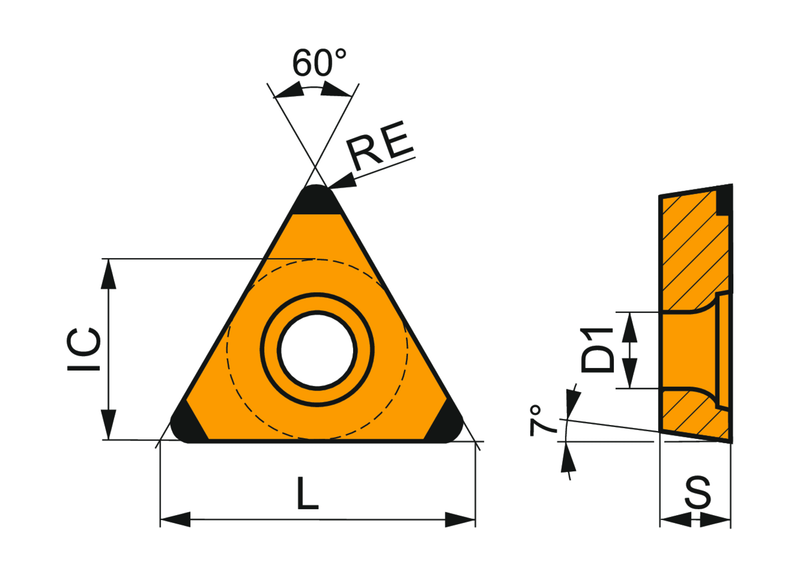

Insert Geometry
Insert DesignTCGW
Insert Shape Code (SC)T - angulaire, angle d'inclinaison de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.098"
Depth of Cut Max — mm (APMX)2.5 mm
Tool Information
Reference Numbers
EDP Number6755927
EAN3603602912930
File Type Download
TCGW 21.52S00420:TB310 — Line Drawing PDF Download
