TNGA 332S00420:TB310
TNGA 332S00420:TB310

TNGA 332S00420:TB310

UGC DOR6755928
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$191.79 CAD - $191.79 CAD
$191.79 CAD
$191.79 CAD - $191.79 CAD
$191.79 CAD

Vendu en lots de : 2

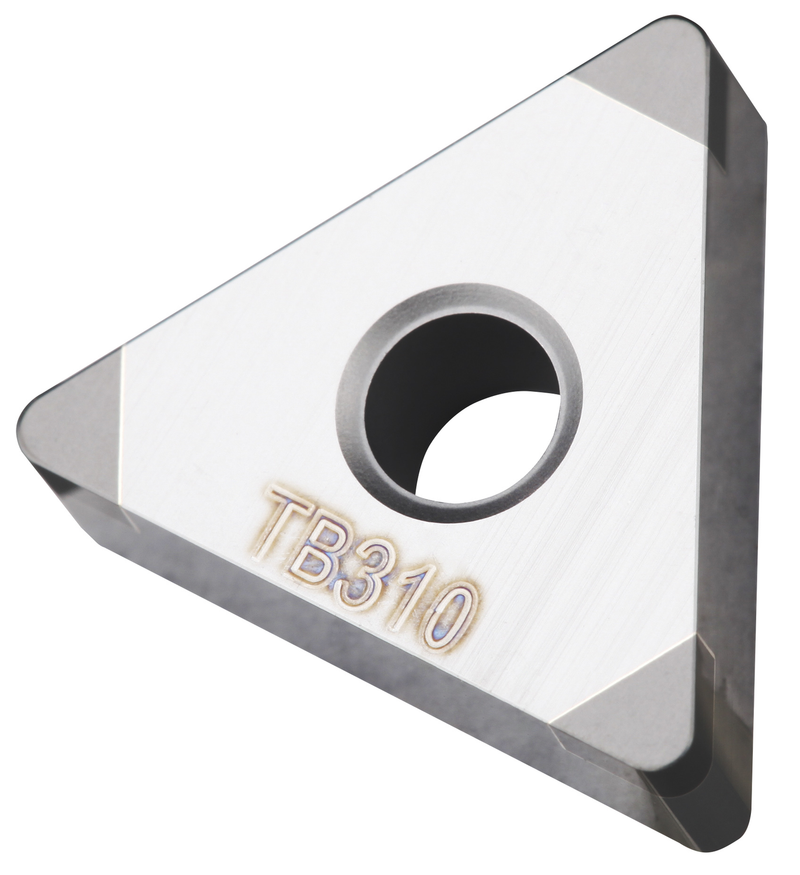

Insert pour le tournage dur avec 3 coins à plaquette CBN sur une face, triangulaire avec un diamètre de cercle inscrit de 3/8", une épaisseur de 3/16", un rayon de bec de 1/32", une précision de positionnement selon la classe de tolérance ISO-G, des arêtes de coupe arrondies avec facette T-land -20°/0.004", en nuance TB310, un nitrure de bore cubique non revêtu de la gamme ISO H01-H10, pour l'usinage à grande vitesse de matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI)TNGA 332S00420:TB310
Product Name (ISO)TNGA 160408S01020C:TB310
GradeTB310
Chipbreaker (CBMD)Pas de brise-copeaux
Product Number6755928
Product FamilyTNGA CBN

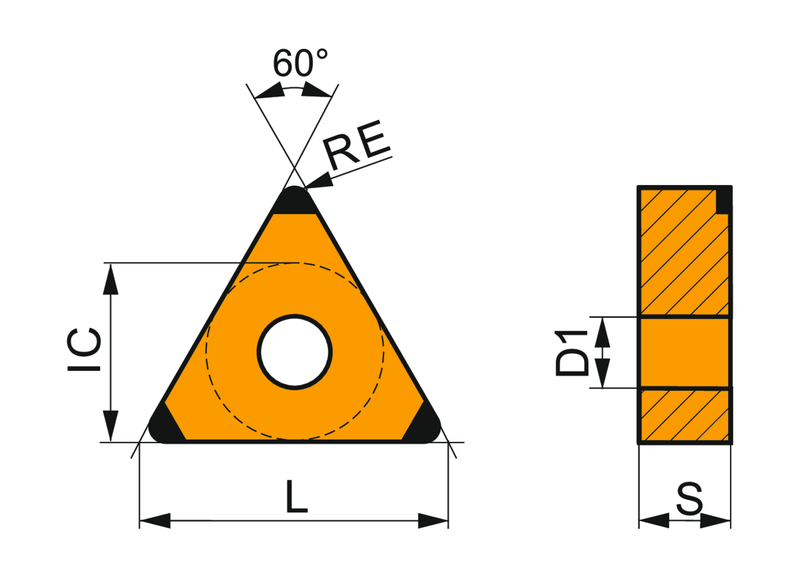

Insert Geometry
Insert DesignTAIPAN
Insert Shape Code (SC)T - angulaire à 60° inclus
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.098"
Depth of Cut Max — mm (APMX)2.5 mm
Tool Information
Reference Numbers
EDP Number6755928
EAN3603602912947
File Type Download
TNGA 332S00420:TB310 — Line Drawing PDF Download
