VBGW 331S00420:TB310
VBGW 331S00420:TB310

VBGW 331S00420:TB310

UGC DOR6755929
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$131.79 CAD - $131.79 CAD
$131.79 CAD
$131.79 CAD - $131.79 CAD
$131.79 CAD

Vendu en lots de : 2

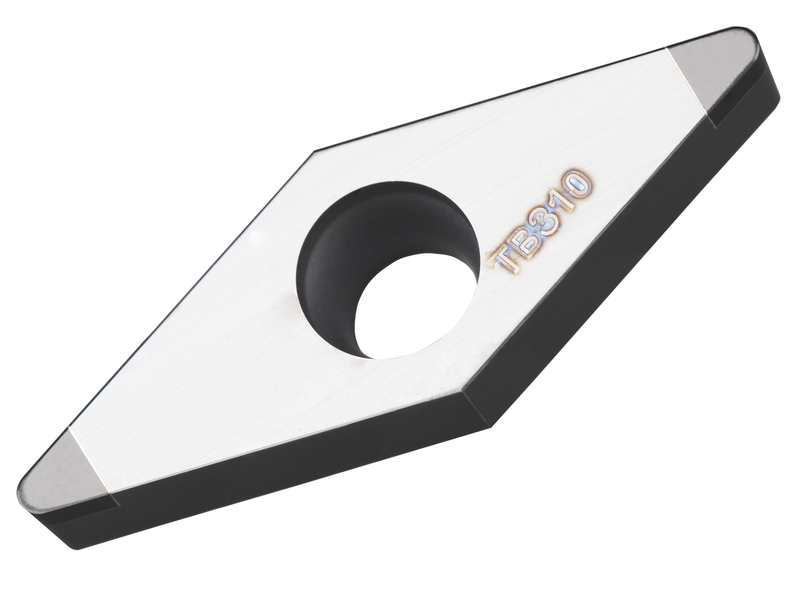

Plaquette pour tournage dur avec 2 coins à pointe en CBN sur une face, rhomboïde 35° avec dépouille de 5°, diamètre du cercle inscrit de 3/8", épaisseur de 3/16", rayon de bec de 1/64", précision de positionnement selon la classe de tolérance ISO-G, arêtes de coupe arrondies avec facette T-land -20°/0.004", en nuance TB310, un nitrure de bore cubique non revêtu dans la plage ISO H01-H10, pour l'usinage à grande vitesse des matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI)VBGW 331S00420:TB310
Product Name (ISO)VBGW 160404S01020B:TB310
GradeTB310
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755929
Product FamilyVBGW CBN

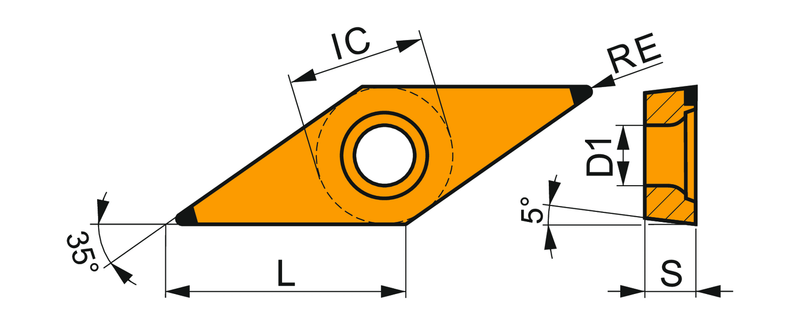

Insert Geometry
Insert DesignVBGW
Insert Shape Code (SC)V - Angle d'ouverture 35°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.142"
Depth of Cut Max — mm (APMX)3.6 mm
Tool Information
Reference Numbers
EDP Number6755929
EAN3603602912954
File Type Download
VBGW 331S00420:TB310 — Line Drawing PDF Download
