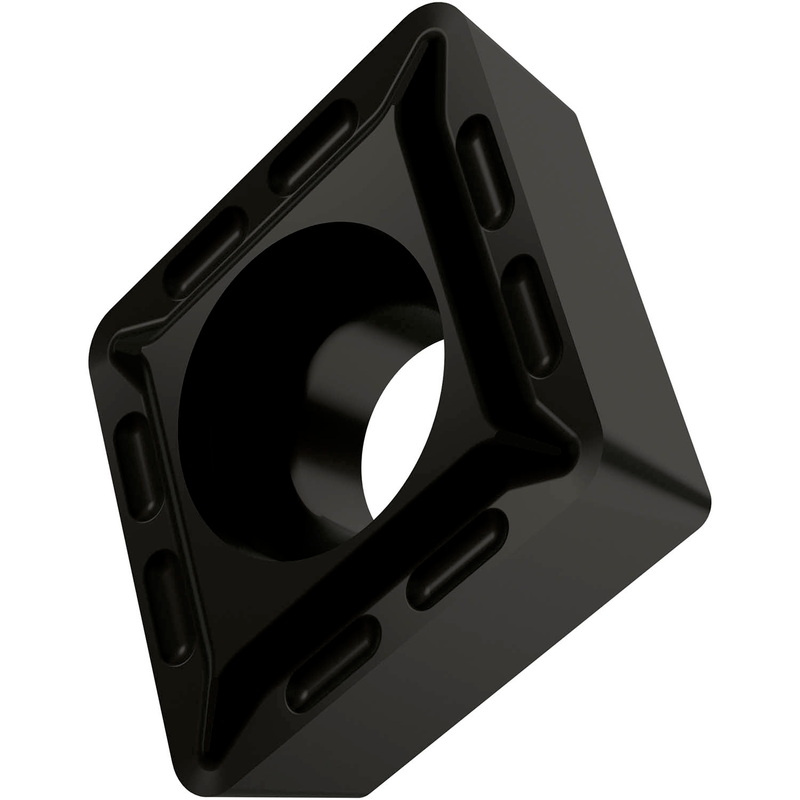

CCMT 2.520.5-FF2:T9325
CCMT 2.520.5-FF2:T9325

CCMT 2.520.5-FF2:T9325

UGC DOR6755932
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.47 CAD - $11.47 CAD
$11.47 CAD
$11.47 CAD - $11.47 CAD
$11.47 CAD

Vendu en lots de : 10

Plaquette positive simple face à 80° rhomboïde avec dépouille de 7°, diamètre du cercle inscrit de 5/16", épaisseur de 1/8", rayon de bec de 1/128" et précision d'indexage selon la classe de tolérance ISO M, brise-copeaux FF2, en nuance T9325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la plage ISO P15-P35, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)CCMT 2.520.5-FF2:T9325
Product Name (ISO)CCMT 080302E-FF2:T9325
GradeT9325
Chipbreaker (CBMD)FF2
Product Number6755932
Product FamilyCCMG
Insert Geometry
Insert DesignCCMG
Insert Shape Code (SC)C - angle d'inclinaison rhomboïdal de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.059"
Depth of Cut Max — mm (APMX)1.5 mm
Tool Information
Reference Numbers
EDP Number6755932
EAN3603602912985
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Utilisation possible
File Type Download
CCMT 2.520.5-FF2:T9325 — Line Drawing PDF Download
