CCMT 2.521-FF2:T9325
CCMT 2.521-FF2:T9325

CCMT 2.521-FF2:T9325

UGC DOR6755933
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.64 CAD - $10.64 CAD
$10.64 CAD
$10.64 CAD - $10.64 CAD
$10.64 CAD

Vendu en lots de : 10

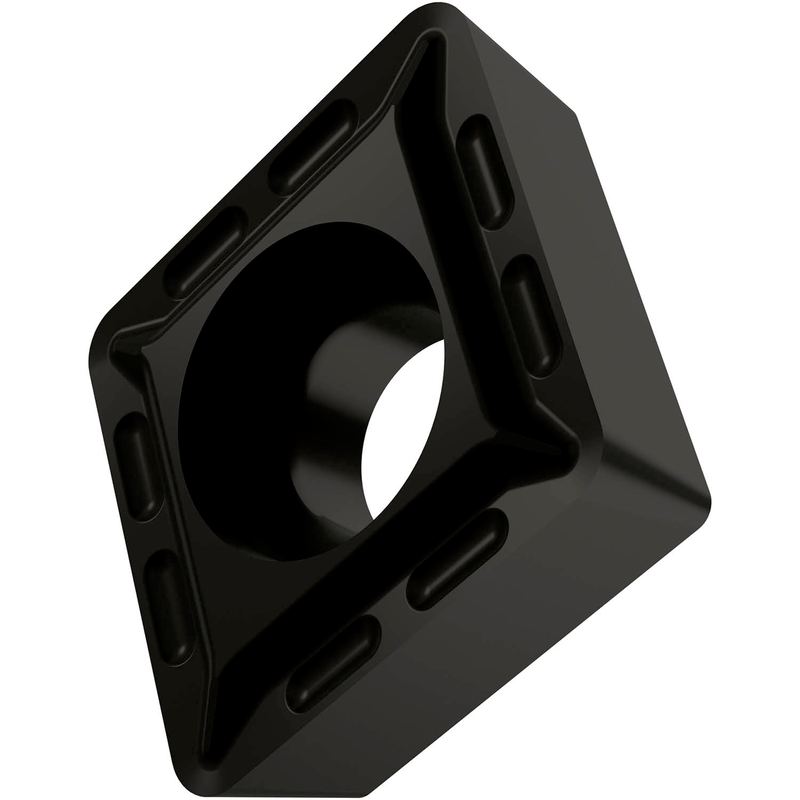

Plaquette de tournage positive simple face, rhomboïde 80° avec dépouille 7°, diamètre du cercle inscrit de 5/16", épaisseur 1/8", rayon de bec 1/64" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux FF2, en nuance T9325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD, dans la plage ISO P15-P35, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)CCMT 2.521-FF2:T9325
Product Name (ISO)CCMT 080304E-FF2:T9325
GradeT9325
Chipbreaker (CBMD)FF2
Product Number6755933
Product FamilyCCMG
Insert Geometry
Insert DesignCCMG
Insert Shape Code (SC)C - angle inclus rhombique de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.098"
Depth of Cut Max — mm (APMX)2.5 mm
Tool Information
Reference Numbers
EDP Number6755933
EAN3603602912992
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Utilisation possible
File Type Download
CCMT 2.521-FF2:T9325 — Line Drawing PDF Download
