ECMT 21.51-FM2:T9335
ECMT 21.51-FM2:T9335

ECMT 21.51-FM2:T9335

UGC DOR6755935
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.79 CAD - $11.79 CAD
$11.79 CAD
$11.79 CAD - $11.79 CAD
$11.79 CAD

Vendu en lots de : 10

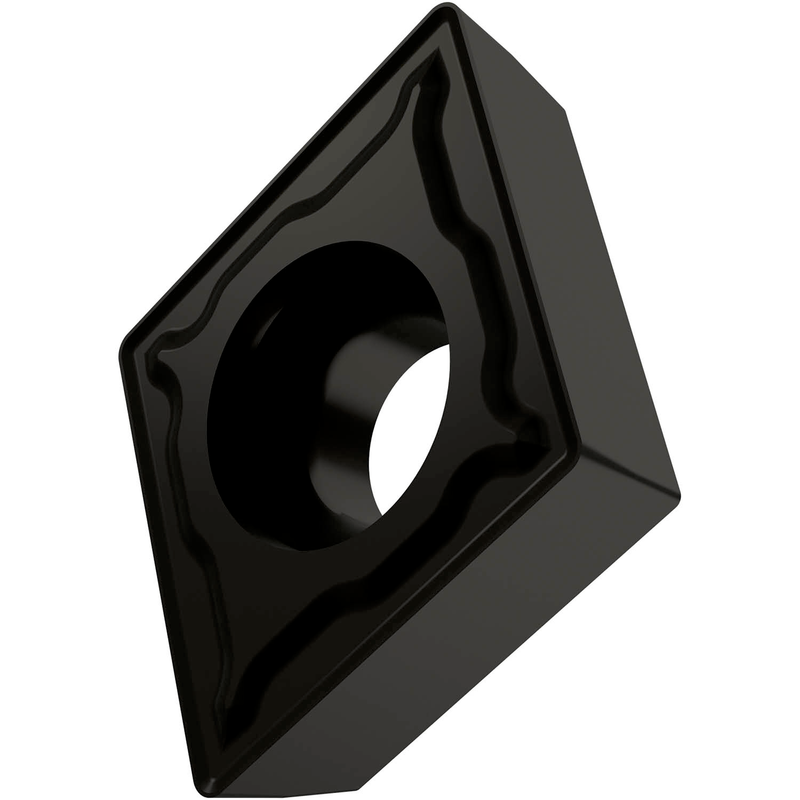

Plaquette de tournage positive simple face, rhomboïde 75° avec dépouille 7°, diamètre du cercle inscrit de 1/4", épaisseur 3/32", rayon de bec 1/64" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux FM2, en nuance T9335, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P20-P45, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)ECMT 21.51-FM2:T9335
Product Name (ISO)ECMT 060204E-FM2:T9335
GradeT9335
Chipbreaker (CBMD)FM2
Product Number6755935
Product FamilyCEMT

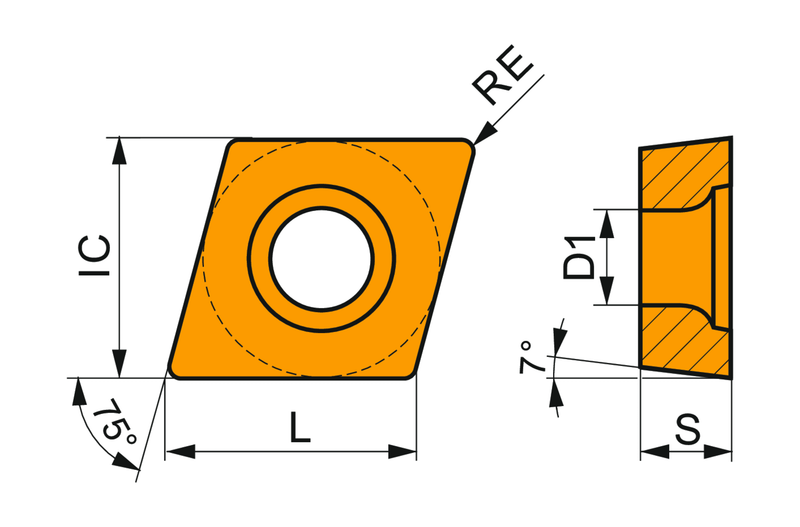

Insert Geometry
Insert DesignCEMT
Insert Shape Code (SC)F - angle inclus rhomboïde 75°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.106"
Depth of Cut Max — mm (APMX)2.7 mm
Tool Information
Reference Numbers
EDP Number6755935
EAN3603602913012
File Type Download
ECMT 21.51-FM2:T9335 — Line Drawing PDF Download
