CEMT 2.521-FM2:T9335
CEMT 2.521-FM2:T9335

CEMT 2.521-FM2:T9335

UGC DOR6755938
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.21 CAD - $12.21 CAD
$12.21 CAD
$12.21 CAD - $12.21 CAD
$12.21 CAD

Vendu en lots de : 10

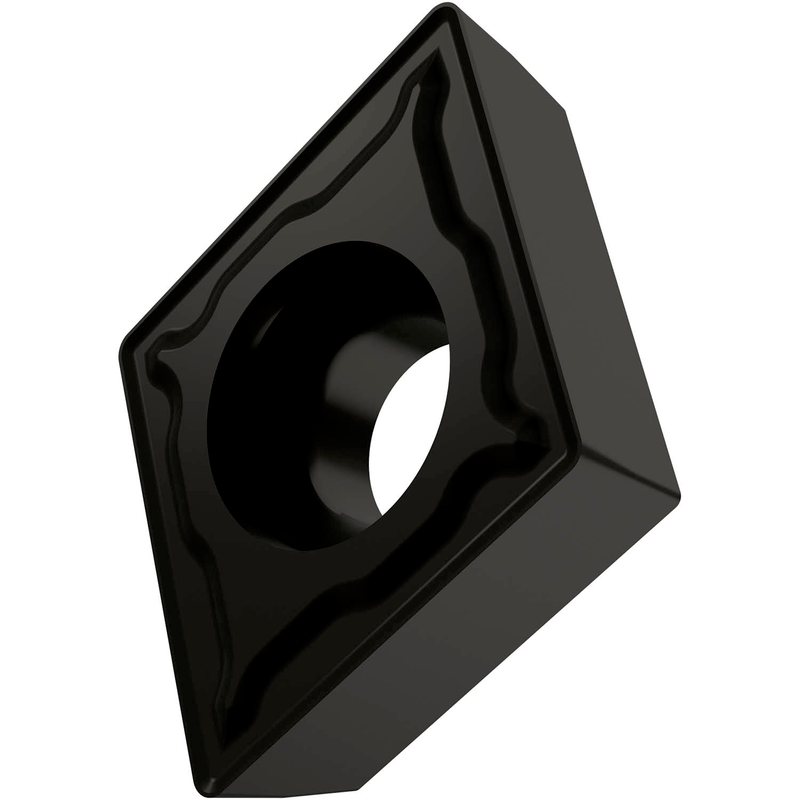

Plaquette de tournage positive simple face, rhomboïde 75° avec dépouille 7°, diamètre du cercle inscrit de 5/16", épaisseur 1/8", rayon de bec 1/64" et précision d'indexage selon la classe de tolérance ISO M, brise-copeaux FM2, en nuance T9335, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P20-P45, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)ECMT 2.521-FM2:T9335
Product Name (ISO)ECMT 080304E-FM2:T9335
GradeT9335
Chipbreaker (CBMD)FM2
Product Number6755938
Product FamilyCEMT

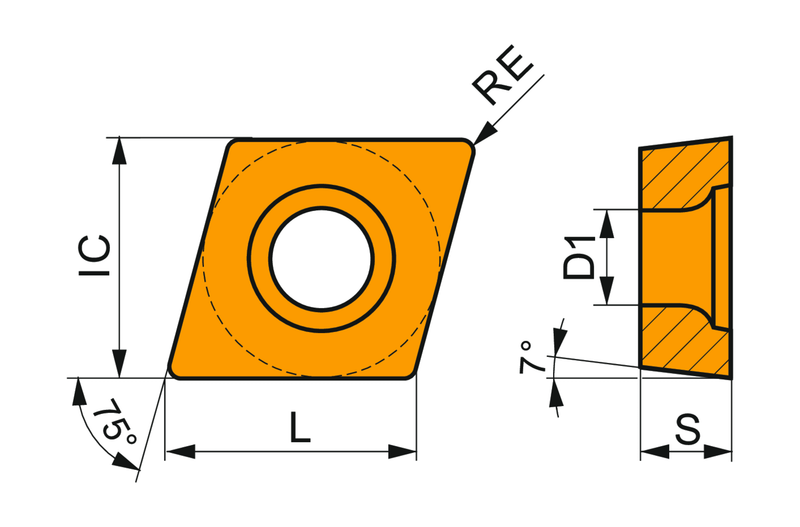

Insert Geometry
Insert DesignCEMT
Insert Shape Code (SC)E - angle de 75° de rhombe
Insert Geometry
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.106"
Depth of Cut Max — mm (APMX)2.7 mm
Tool Information
Reference Numbers
EDP Number6755938
EAN3603602913043
File Type Download
CEMT 2.521-FM2:T9335 — Line Drawing PDF Download
