CECMT 2.522-FM2:T9325
CECMT 2.522-FM2:T9325

CECMT 2.522-FM2:T9325

UGC DOR6755939
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.21 CAD - $12.21 CAD
$12.21 CAD
$12.21 CAD - $12.21 CAD
$12.21 CAD

Vendu en lots de : 10

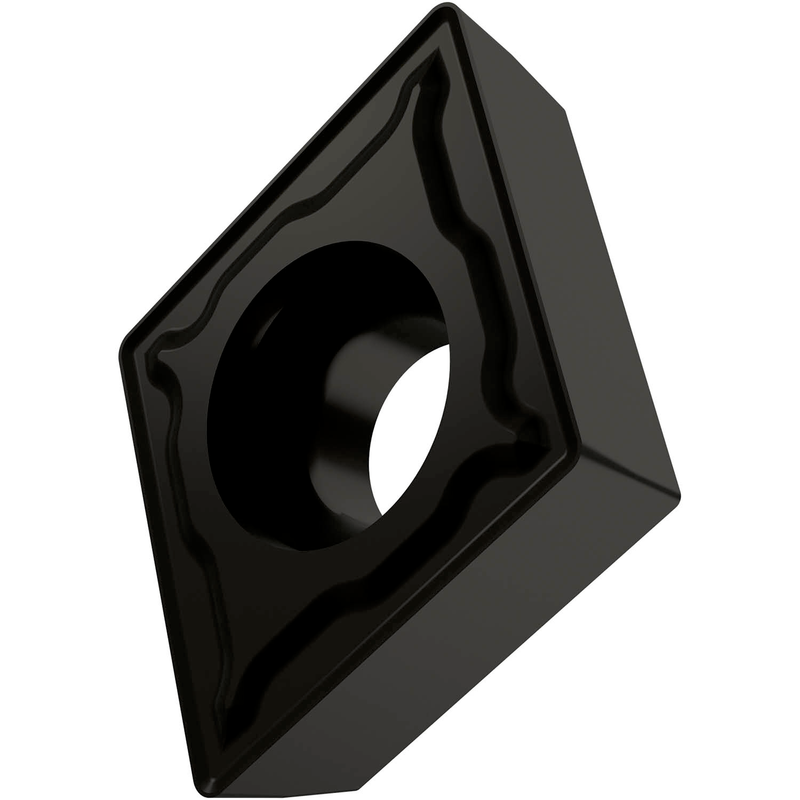

Plaquette de tournage positive simple face, rhomboïde 75° avec un angle de dépouille de 7°, diamètre du cercle inscrit de 5/16", 1/8" d'épaisseur, rayon de bec de 1/32" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux FM2, en nuance T9325, un carbure WC-Co à gradient fonctionnel avec revêtement MT-CVD dans la gamme ISO P15-P35, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)CEMT 2.522-FM2:T9325
Product Name (ISO)ECMT 080308E-FM2:T9325
GradeT9325
Chipbreaker (CBMD)FM2
Product Number6755939
Product FamilyCEMT

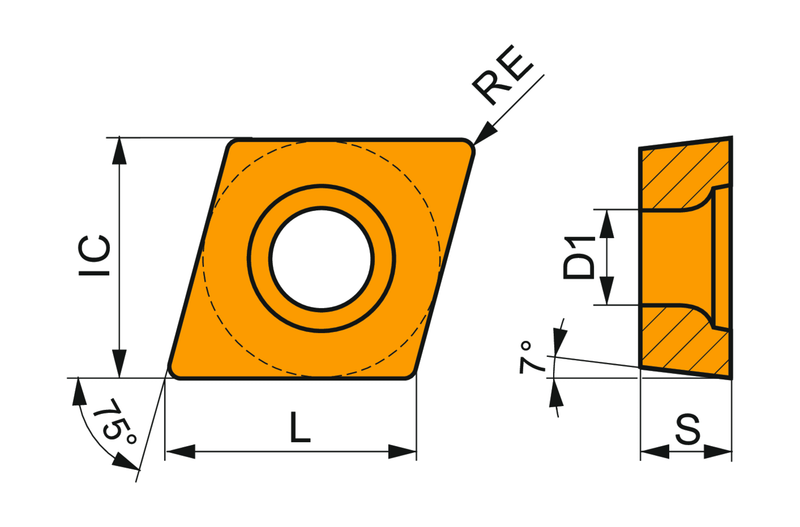

Insert Geometry
Insert DesignCEMT
Insert Shape Code (SC)F - Angle inclus rhombique de 75°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.138"
Depth of Cut Max — mm (APMX)3.5 mm
Tool Information
Reference Numbers
EDP Number6755939
EAN3603602913050
File Type Download
CECMT 2.522-FM2:T9325 — Line Drawing PDF Download
